Manual vs. Pneumatic Sanitary Valves for Automated CIP Systems

Clean-In-Place (CIP) systems carry immense stakes in food, beverage, and chemical processing facilities. Modern hygienic manufacturing heavily depends on these automated cleaning loops. A single CIP loop is ultimately only as reliable as its flow control components. Upgrading or scaling process lines forces a critical engineering choice. You must choose between legacy manual actuation and modern pneumatic automation. Incorrect specification inevitably leads to unverified cleaning cycles. It can also cause severe product contamination or unnecessary capital expenditure. This article provides process engineers and plant managers with a pragmatic, compliance-focused framework. We evaluate manual and pneumatic actuation specifically for hygiene-critical applications. You will learn how to balance facility infrastructure against operational reliability. We also explore practical ways to guarantee verifiable, repeatable actuation during every single cleaning cycle.

Key Takeaways

• Manual actuation remains viable for low-frequency routing, isolated storage tanks, and simple sampling, offering low initial CAPEX and zero utility reliance.

• Pneumatic actuation is essential for scalable, repeatable CIP processes, eliminating human sequencing errors and enabling PLC-integrated digital traceability.

• The true cost of pneumatic systems includes the required infrastructure (clean compressed air, feedback sensors, and PLC integration).

• Compliance (FDA, 3-A) relies not just on the valve body design, but on verifiable, repeatable actuation during the cleaning cycle.

Defining Success: Operational Demands on a CIP Sanitary Valve

Hygiene and cleanability are non-negotiable in processing facilities. A perfectly designed sanitary valve requires specific internal geometry to function properly. You must ensure the internal design remains entirely crevice-free. Self-draining capabilities prevent stagnant pools of liquid from forming. Engineers specify precise surface finishes for all wetted parts. Usually, an Ra value of 0.8 micrometers or better prevents stubborn biofilm accumulation. Microorganisms cannot grip these polished metal surfaces easily.

Cycle stress presents another massive operational challenge. CIP and Sterilize-in-Place (SIP) procedures expose components to harsh physical realities. Thermal shocks happen frequently during daily plant operations. Acidic rinses and caustic washes strip away organic residues efficiently. However, these harsh chemicals simultaneously degrade weak internal materials. High-temperature steam sterilization easily melts improper elastomers. The chosen body and seals must withstand these daily extremes. They cannot suffer from thermal degradation over time. They must also resist chemical embrittlement caused by alkaline cleaners.

Compliance forms the definitive engineering baseline. Any chosen unit must meet strict regional and industry standards. Manual or automated, it must comply fully. The 3-A Sanitary Standards dictate strict design parameters in North America. FDA compliance ensures elastomers never leach toxins into consumer products. In Europe, EHEDG guidelines provide the primary regulatory framework. These governing bodies verify cleanability through rigorous physical testing. They ensure manufacturers eliminate dead spaces where bacteria thrive.

We can highlight a few critical best practices here. Always request material test reports from your chosen manufacturer before installation. Secure FDA compliance certificates for all rubber components. A common mistake involves relying on standard industrial valves for hygienic processes. Standard industrial models utilize internal threads. They often feature flat seals. These design flaws easily trap deadly bacteria and ruin product batches.

Evaluating Manual Sanitary Valves: Viable Scenarios and Hidden Risks

Manual actuation still holds considerable value in specific operational scenarios. Process engineers must identify nodes where automation brings diminishing returns. CIP solution storage tank isolation offers a perfect example. Point-of-use sampling also benefits from simple manual control. You can safely deploy hand-operated units on low-throughput legacy lines. These secondary areas often lack existing automation infrastructure entirely.

Initial capital expenditure heavily favors manual options initially. You avoid purchasing expensive pneumatic actuators. You also skip buying electronic position sensors. However, operational drag quickly accumulates over time. Dispatching operators to manually cycle units during multi-step CIP processes costs valuable time. You pay high ongoing labor costs for routine actions. Production stops completely while workers physically adjust the process flow. Efficiency drops drastically in large-scale plants.

The human error factor presents severe operational risks daily. Manual sequencing inherently introduces dangerous mistakes. A distracted operator might easily skip a crucial cleaning step. They might perform an incomplete caustic wash. Cross-contamination becomes a real threat if someone opens the wrong pipeline. Ultimately, you risk failing critical compliance audits. Manual systems lack automated digital data logging. Regulators cannot confidently verify the cleaning cycle actually occurred.

We frequently see facility managers underestimating manual labor costs. You must map out the walking distance for operators. Calculate the time they spend opening and closing units. You will often find manual control slows down daily production significantly.

Evaluating Pneumatic Sanitary Valves: Scalability and Process Control

Programmable Logic Controller (PLC) integration transforms facility operations completely. Pneumatic actuators utilize position feedback sensors. They enable continuous digital monitoring. They log operational data automatically for every single cleaning cycle. This digital traceability simplifies regulatory compliance immensely for plant managers. Auditors strongly prefer automated records over handwritten operator logs. Digital records prove your cleaning sequence executed perfectly.

Complex fluid manifolds demand absolute mechanical repeatability. Matrix manifolds in high-capacity food processing plants route multiple fluids simultaneously. You must direct raw product, purified water, and CIP chemicals safely. Precise, split-second routing is completely non-negotiable in these environments. Pneumatic automation executes these rapid changes flawlessly. It ensures toxic cleaning chemicals never mix with consumable products. It guarantees consistent fluid separation.

Fail-safe architecture provides critical safety advantages for plant personnel. Pneumatic spring-return designs offer significant physical protection. You can configure them as Normally Open (NO) or Normally Closed (NC). They default to a designated safe state during unexpected power outages. If utility air pressure drops, heavy springs force immediate closure. This simple mechanical failsafe prevents catastrophic product loss. It also stops hazardous chemical spills instantly.

Infrastructure prerequisites require careful engineering consideration. Maintain an objective view of required facility upgrades. Pneumatic automation demands a continuous supply of clean, dry compressed air. You must install complex solenoid wiring networks. Control cabinets require dedicated floor space. Actuator maintenance becomes an ongoing routine requirement. If your facility lacks dry air, internal moisture will destroy actuator mechanisms rapidly.

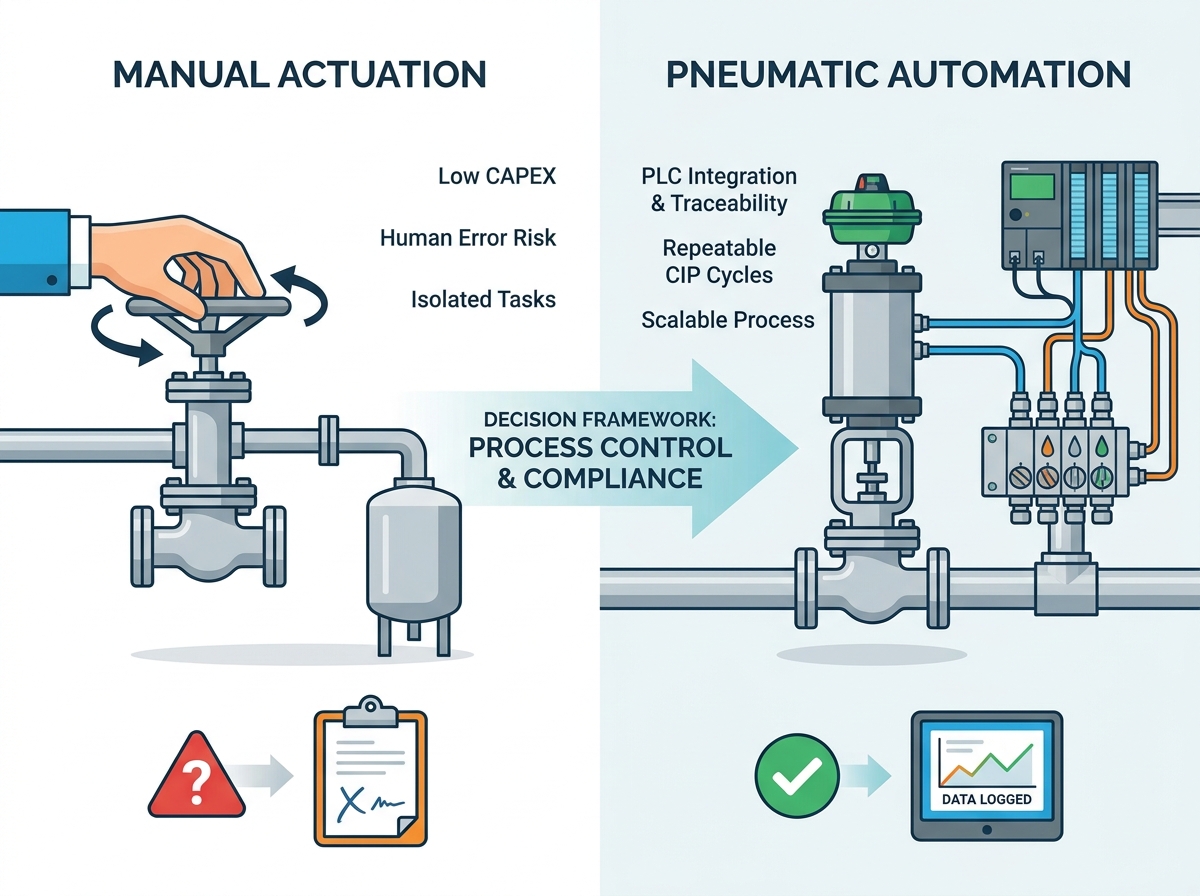

Head-to-Head Decision Framework: Which Actuation Fits Your Line?

Maintenance and rebuild realities differ significantly between both options. Manual units offer incredibly simple, straightforward maintenance procedures. You generally only perform basic rubber seal swaps. Technicians can train on manual rebuilds in minutes. Pneumatic actuators require much more complex rebuilding procedures. Technicians must replace internal O-rings carefully. They must lubricate piston shafts utilizing food-grade grease. They also need to recalibrate proximity switches meticulously after reassembly.

Audit readiness strongly dictates final engineering selections. You must evaluate how each option supports process validation properly. Automated choices provide indisputable digital records. They log exact mechanical positioning during every CIP cycle step. This drastically simplifies FDA and 3-A regulatory audits. Manual processes rely heavily on standard operating procedures and trust. Regulators heavily scrutinize handwritten CIP logs during standard plant inspections.

Below is a breakdown analyzing maintenance and compliance impacts specifically.

Actuation Impact Chart

You must weigh these factors against your specific plant environment. A small craft brewery might tolerate manual logging. A massive dairy processing facility simply cannot afford undocumented cleaning cycles.

Engineering Best Practices for Sanitary Valve Installation

Proper installation guarantees cleaning fluid reaches all wetted surfaces. You must completely eliminate dead legs in the piping system. A dead leg describes a branch where fluid stagnates dangerously. Instruct your piping team to follow strict L/D ratio rules. The length of the branch should never exceed two times the pipe diameter. This fundamental rule ensures wash fluids circulate actively through the entire branch.

Orientation profoundly impacts gravitational drainability. You must detail the specific installation angles required for your pipeline. Diaphragm and butterfly types are particularly sensitive to vertical mounting positions. You must angle them correctly to ensure complete gravitational draining. Trapped CIP chemicals will inevitably taint the next product batch. Always verify the manufacturer's recommended drain angle before finalizing any welds.

Material compatibility prevents catastrophic seal failure. You must match elastomers directly to your specific chemical concentrations. CIP and SIP parameters vary significantly between different processing facilities.

Consider this brief material selection checklist:

1. EPDM: Excellent for hot water and pure steam. It performs poorly against fatty products or natural oils.

2. FKM (Viton): Highly resistant to aggressive acids and oils. It degrades rapidly in continuous high-temperature pure steam.

3. PTFE (Teflon): Offers nearly universal chemical resistance. It lacks natural flexibility and requires highly specialized seating designs.

You must audit your specific cleaning temperatures before selecting elastomers. Reach out to a certified processing engineer to verify your material choice. You can explore modern automated options thoroughly by reviewing a detailed sanitary valve application guide today.

Conclusion

Let us summarize the final engineering assessment of process line actuation. We recommend manual types strictly for auxiliary, low-frequency facility tasks. They work exceptionally well for isolated storage tanks or simple point-of-use sampling. Conversely, specify pneumatic systems for your core product process lines. These critical lines require verifiable, scalable, and highly repeatable CIP cycles. Automation eliminates human sequencing errors completely.

Conduct a thorough facility infrastructure audit as your immediate next step. Check your current compressed air capacity carefully. Evaluate your existing PLC network infrastructure before contacting any manufacturer. You must absolutely confirm your facility can support pneumatic automation upgrades.

Consult your internal engineering team to draft precise technical specifications. Download a comprehensive sizing guide to match flow coefficients exactly. Specify the exact configuration for your unique processing line. This careful planning guarantees long-term compliance and supreme operational reliability.

FAQ

Q: Can a manual sanitary valve be retrofitted with a pneumatic actuator later?

A: Yes, many modern hygienic designs feature adaptable modular platforms. You can typically swap a manual handle for a pneumatic actuator without removing the base body from the piping. However, you must verify compatibility first. Ensure the stem dimensions match perfectly and secure the correct mounting bracket. Facility air supply lines and control wiring must also reach the new physical location.

Q: How does a pneumatic valve verify that it has opened during a CIP cycle?

A: Pneumatic setups utilize dedicated control tops mounted directly on the actuator. These tops house internal micro-switches or proximity sensors. When compressed air forces the piston upwards, a magnetic target aligns with the sensor. The sensor immediately sends a digital signal back to the PLC. This reliably proves the unit physically opened, logging it directly into the secure CIP validation record.

Q: Are pneumatic valves more susceptible to high-temperature SIP cycles than manual valves?

A: Pneumatic actuators contain internal rubber O-rings and sensitive plastic components. Intense heat transfers up the metal stem during 135°C steam-in-place (SIP) sterilization cycles. This severe thermal transfer can prematurely degrade internal actuator seals. Manual handles lack these sensitive internals entirely. Engineers strongly recommend high-temperature stem seals or specialized thermal barriers to protect actuator housings.

Q: What is the standard air pressure required to operate pneumatic sanitary valves?

A: Industry standard actuators typically require between 60 to 90 PSI of air pressure. This pressure effectively overcomes internal spring tension. Heavy-duty springs for high-pressure fluid pipelines might require up to 110 PSI. Crucially, this supplied compressed air must be heavily filtered and dried. Unfiltered moisture or lubricating oil in the air lines will destroy internal actuator mechanisms rapidly.
