A single poorly specified component can quietly harbor dangerous bacteria. It can lead directly to catastrophic batch contamination. Facilities frequently fail compliance audits due to these seemingly minor oversights. You lose immense revenue when an entire tank spoils unexpectedly. In beverage and fermentation processes, "food grade" does not mean "sanitary." Standard industrial fittings often fail to meet the required hygienic rigor. They typically hide microscopic internal crevices. Many facility managers mistakenly assume standard parts perform adequately. They soon discover recurring contamination issues.
We provide a straightforward, vendor-neutral evaluation framework. You will learn how to specify the exact sanitary valve for your facility. We base this framework on specific application needs, fluid dynamics, and rigorous CIP demands. Protect your product integrity today. Good engineering prevents costly unplanned downtime. It ensures your beverage tastes exactly as intended.
Sanitary valves must meet strict surface roughness (Ra) standards and completely eliminate dead legs to ensure effective Clean-in-Place (CIP) operations.

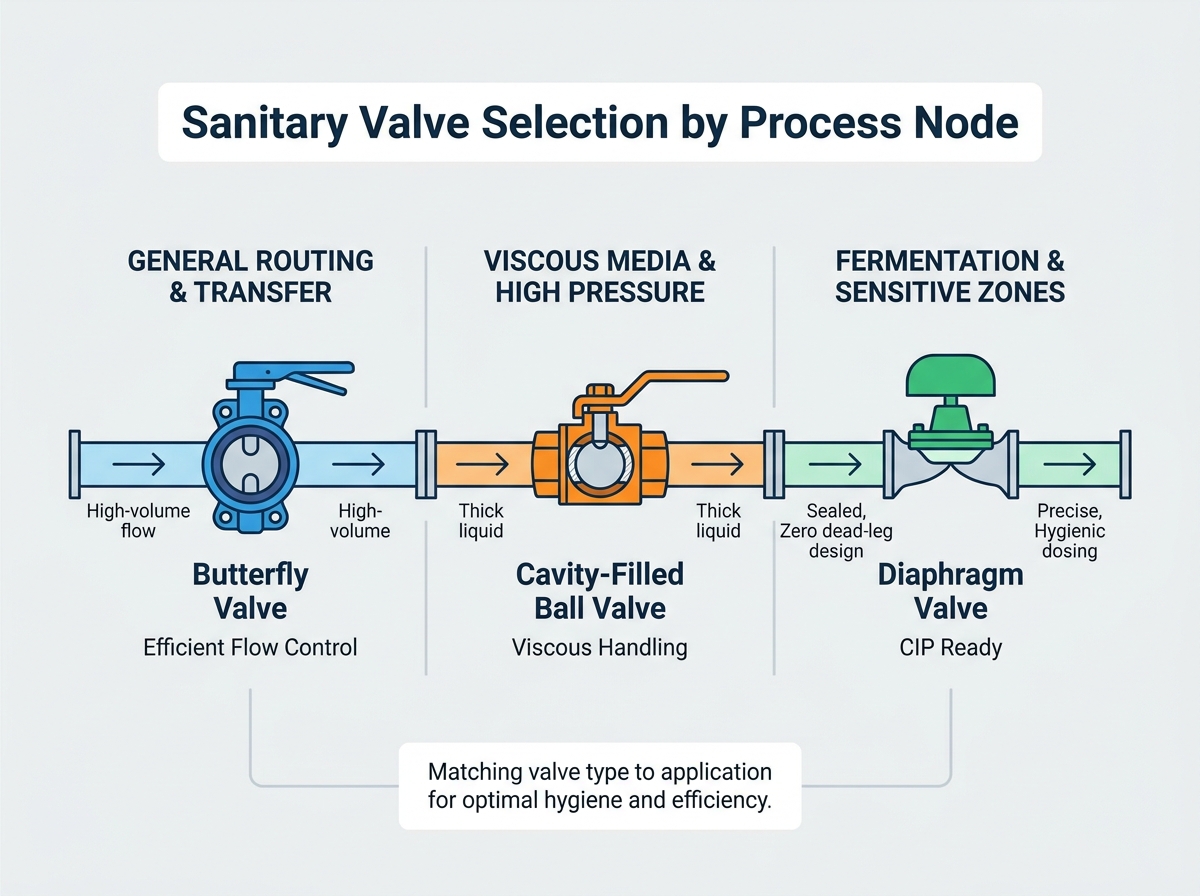

Valve selection should map directly to the process stage: Butterfly valves for general routing, Ball valves for viscous media, and Diaphragm valves for highly sensitive fermentation zones.
Material compatibility across both the valve body (316L vs. 304L Stainless) and elastomers (EPDM, PTFE, FKM) dictates longevity and resistance to aggressive cleaning chemicals.
Using non-certified equipment introduces massive business risks. You might face sudden product recalls. Cross-contamination ruins entire production runs. Non-compliant parts also accelerate equipment degradation. Unplanned maintenance destroys your production schedule.
Verifiable certifications protect your facility during aggressive compliance audits. They mitigate expensive liability across your entire supply chain. Facility inspectors constantly look for official 3-A stamps. These stamps verify your equipment meets strict hygiene benchmarks. You must completely avoid unverified components to ensure safety. A reputable vendor always provides official material documentation upfront. Keep these important records readily accessible for inspectors. They actively prove your commitment to consumer health.
Sanitary finishes require an interior Roughness Average (Ra) of 32 or less. Micro-crevices trap dangerous bacteria easily. These tiny internal scratches become the primary cause of persistent biofilm. Biofilm stubbornly resists standard chemical cleaners. Perfectly smooth surfaces deny bacteria a safe hiding place. We highly recommend measuring all surface finishes upon delivery.
Manual cleaning wastes valuable time. It heavily risks human error. True hygienic components support automated Clean-in-Place (CIP). They also handle Sterilize-in-Place (SIP) protocols perfectly. You never need to disassemble them for routine sanitization. Automated cleaning flushes the entire system safely. It maintains high temperatures and precise chemical concentrations.
Common Hygiene Mistakes:
Assuming industrial stainless steel automatically means hygienic compliance.
Failing to request official certification paperwork during procurement.
Ignoring the exterior finish, which can harbor airborne contaminants.
Different process stages require specific architectures. You must match the component exactly to the task. Using the wrong type invites mechanical failure.
They work brilliantly for high-volume liquid transfer. We use them constantly for wort and water routing. They provide highly cost-effective flow isolation. They remain lightweight and easy to maintain. However, they struggle handling highly viscous liquids. You cannot use them for precise flow throttling. The internal disc creates unwanted turbulence at partial openings.
These handle high-pressure applications effortlessly. They manage viscous media like syrups and thick purees. They allow completely unrestricted fluid flow. You must specify cavity-filled PTFE seats. Standard seats trap sticky fluids inside the body. Cavity fillers encapsulate the ball completely. They represent a strict requirement for true hygienic operation.
We rely on these heavily for fermentation tanks. They manage sensitive yeast handling perfectly. They excel at ultra-hygienic beverage dosing. They represent the ultimate gold standard for zero dead-leg design. They provide a secure hermetic seal against outside contaminants. They operate slightly slower. However, they offer the highest contamination defense available.
Quality assurance requires frequent mid-batch testing. You need a reliable way to extract analytical samples. These specialized components let you pull liquids safely. You completely avoid introducing ambient bacteria into the main vessel. They feature small ports designed specifically for syringe or flame-sterilized extraction.
Valve Type | Primary Application | Key Advantage | Limitation |
|---|---|---|---|
Butterfly | General liquid routing | Cost-effective isolation | Poor throttling capability |
Ball (Cavity-Filled) | Viscous media, high pressure | Unrestricted flow path | Requires special PTFE seats |
Diaphragm | Fermentation, yeast dosing | Zero dead-leg, hermetic seal | Slower actuation speed |
Sample | QA/QC batch extraction | Prevents ambient contamination | Low flow capacity |
Your process media dictates your material choices directly. Incorrect materials fail rapidly during chemical cleaning cycles. We see this mistake often in new facilities.
Use 304 stainless steel for structural supports. It works well for non-contact areas. You can use it in low-acid environments safely. It costs less while providing decent durability.
Mandate 316L stainless steel for demanding wet zones. High-acid beverages require this upgraded alloy. Hot wort degrades lower-grade metals surprisingly quickly. Aggressive sanitizing environments demand 316L exclusively. The added molybdenum prevents dangerous pitting. It stops rust before it starts.
Seals degrade much faster than metal components. You must choose your elastomers carefully.
EPDM: This remains the standard choice for most breweries. It handles hot water and steam brilliantly. It flexes well during operation. However, oils and fats destroy it quickly.
PTFE (Teflon): It offers superior chemical resistance. It survives the harshest caustic CIP chemicals. Yet, it shows less resilience to frequent thermal cycling. It can suffer from cold flow under constant pressure.
FKM/Viton: Choose this for very specific use cases. It excels in high-temperature environments. It strongly resists lipid-heavy beverage processes. We recommend it for dairy-blended drinks.
Check dynamic load ratings closely. Steam sterilization (SIP) creates extreme thermal expansion. Standard operating conditions look very different. Make sure seals withstand sudden temperature spikes. A cold rinse following a hot steam cycle stresses elastomers heavily. Choose ratings exceeding your absolute maximum parameters.
Proper installation matters just as much as precise selection. Poor piping layouts ruin the best equipment. You must plan your network logically.
Tri-Clamp connections remain the industry standard everywhere. They allow incredibly easy tear-down. Maintenance teams love them for quick inspections. Welded connections offer the highest possible hygienic rating. They eliminate joining crevices entirely. However, they offer absolutely zero flexibility for future changes. Flanged connections handle higher pressures but are harder to clean perfectly.
You must audit your piping schematics thoroughly. Valve placement must never create un-cleanable fluid pockets. We follow the L/D ratio rule strictly. The length of a branch should never exceed its diameter. Long branches prevent cleaning fluids from reaching the end. Bacteria breed rapidly in these stagnant zones. Keep your branches as short as physically possible.
Automated brewhouses require pneumatic or electric actuators. These provide crucial feedback to your central control system. You know exactly when a line opens. They prevent accidental mixing of chemicals and product. Manual hand-levers save money on basic transfer lines. Invest in automation for complex, multi-stage routing.
Factor in specific seat replacement schedules. An under-specified model leads directly to premature seal failure. Leaks cause unplanned, highly expensive downtime. You must inspect elastomers routinely. Replace them before they crack or deform.
Log the installation date of every elastomer seal.
Perform visual inspections during scheduled shutdowns.
Replace hardened or discolored seals immediately.
Protect your operational investment by verifying your suppliers carefully. Fraudulent components fail quickly. Do not compromise on quality assurance.
Require Material Test Reports (MTRs) for every single purchase. Demand verifiable 3-A documentation upfront. Beware of gray-market clones heavily discounted online. These cheap knockoffs often use fraudulent certifications. They contain inferior metals highly prone to rusting. They may look identical externally. Their internal machining usually reveals terrible surface finishes. Always partner with established, reputable distributors.
Compile a precise specification sheet before requesting quotes. This eliminates guesswork entirely.
List the exact line size and preferred connection type.
Define your specific process media and its viscosity.
Record your maximum operating temperatures and dynamic pressures.
Identify your exact CIP chemical concentrations and cycle times.
Send this detailed sheet to your engineering partners. You will receive accurate, tailored pricing. They can match your exact operational parameters flawlessly.
A true hygienic component serves as an active defense mechanism. It fiercely protects your product integrity every single day. Never treat it as just another basic pipe fitting. Encourage your operational decision-makers to prioritize CIP compatibility. Correct elastomer selection always outweighs finding the lowest unit price. Poor choices inevitably lead to catastrophic microbial contamination. View your technical catalogs closely. Match specific designs directly to your piping diagrams. Taking the time to specify correctly saves immense frustration. It keeps your facility running smoothly and profitably. If you require expert guidance, contact us to ensure perfect compliance.
A: Dairy operations require stricter 3-A standards to handle milk proteins and butterfats. These fats adhere stubbornly to surfaces and spoil rapidly. Brewery applications focus more on sugar, yeast, and high-acid environments. While breweries maintain high hygiene, dairy components often require even tighter Ra finishes and specific fat-resistant elastomers like FKM.
A: Standard industrial ball valves feature internal body cavities around the ball. When the ball turns, liquid becomes trapped inside these hidden pockets. Cleaning solutions cannot reach these areas. This trapped wort or beer quickly breeds bacteria. It forms tough biofilm layers. It will eventually contaminate your entire downstream process.
A: Replacement schedules depend directly on your CIP cycle frequency and operating temperatures. High-temperature SIP operations degrade seals faster. Most facilities replace EPDM and PTFE seals annually during preventative maintenance. If you run aggressive caustic cleaners daily, you might need bi-annual replacements to prevent microscopic cracking and unexpected fluid leaks.
A: "Ra" stands for Roughness Average. It measures microscopic peaks and valleys on a metal surface. A lower Ra number indicates a smoother surface. Sanitary equipment requires an Ra of 32 microinches or lower. Smooth surfaces prevent bacteria from anchoring to the metal. This ensures cleaning chemicals can sweep away organic matter effortlessly.
