In hygienic processing across pharmaceuticals, biotech, and food production, the stakes of sanitary valve sizing are exceptionally high. An incorrectly sized valve does not just cause process inefficiencies. It actively risks product shear, creates dead legs, introduces contamination, and leads to failed clean-in-place (CIP) and steam-in-place (SIP) cycles.
Engineers often fall into the common pitfall of simply matching the valve size to the existing line size. However, precise sizing requires a delicate balance between flow rate requirements, acceptable pressure drops, and accurate flow coefficients (Cv). Relying on pipe diameter alone guarantees poor system performance and invites regulatory scrutiny.
This guide explores the technical and commercial methodologies for calculating valve specifications. We will walk you through evaluating vendor solutions and sizing metrics to ensure complete system reliability. Read on to master the sizing variables necessary for strict hygienic compliance and optimal flow control.
Line Size ≠ Valve Size: Sizing a sanitary valve based purely on existing pipe diameter often leads to severe oversizing and loss of flow control.
Cv is the Benchmark: Flow coefficient (Cv) is the universal metric for comparing valve capacities across different manufacturers.
Pressure Drop (ΔP) is Strategic: Assigning the correct pressure drop across the valve is critical; too little causes sluggish control, while too much triggers cavitation and product damage.
Hygienic Fluid Dynamics Matter: Viscosity, specific gravity, and the requirement for Clean-in-Place (CIP) velocities dictate specific sanitary valve geometries.
Precise sizing represents a critical decision-stage requirement before procurement. You must view sizing as a foundational engineering task rather than an afterthought. An incorrectly specified sanitary valve disrupts entire production lines. Let us examine the specific consequences of missing the mark on your calculations.
Many facilities oversize valves by defaulting to the surrounding pipe diameter. This approach introduces two severe operational hazards.
Control Resolution Loss: An oversized valve operates too close to its closed position. The internal plug barely lifts off the seat to achieve the target flow. This tight position leads to erratic flow control, commonly known as hunting. The system constantly overcorrects, wearing out actuators prematurely.
Sanitary Risks: Oversized bodies create low internal fluid velocities. These slow speeds prevent effective mechanical scouring during CIP procedures. Failing to achieve proper turbulent flow leaves product residue behind. This residue breeds bacteria and guarantees failed batch validations.
Conversely, selecting a valve too small for the process creates high-velocity bottlenecks. Undersizing generates destructive physical forces inside your piping network.
Product Degradation: Small valve ports force fluids to accelerate rapidly. High velocities and excessive pressure drops cause severe shear damage. Delicate media, such as active proteins, dairy emulsions, and cellular suspensions, degrade instantly under these conditions.
Hardware Failure: High velocity across a tight restriction drastically increases susceptibility to cavitation. Cavitation damages the valve trim over time. These microscopic pits create perfect bacterial traps, compromising the hygienic boundary completely.
Before applying any mathematical formulas, you must establish strict baseline parameters. Process engineers require several exact inputs to calculate an accurate flow profile. Guessing these values guarantees a faulty installation.
You need to gather comprehensive data about your process conditions. Follow this ordered list to collect the essential variables:
Identify the specific gravity of your process media.
Determine the dynamic viscosity under normal operating temperatures.
Calculate both standard operating flow rates and absolute maximum flows.
Define the inlet pressure and the required outlet pressure.
You must calculate specifications for both standard operating conditions and maximum anticipated flow. Normal flow dictates where the valve operates daily. Maximum flow accounts for high-velocity CIP requirements. Hygienic cleaning cycles often demand significantly higher flow rates than standard product transfers. Your selected valve must accommodate both extremes without stalling or hunting.
Standard sizing equations generally assume water at 60°F. Water possesses a specific gravity of 1.0. However, sanitary processes rarely pump pure water.
Non-Newtonian fluids dominate the food and pharmaceutical sectors. Syrups, lotions, and biological slurries exhibit varying viscosities under pressure. Viscous media require corrected formulas. They also demand specialized valve trims to prevent clogging. If you ignore viscosity correction factors, you will underestimate the required flow capacity.
You must differentiate between process liquids and utility gases. Liquids are incompressible, meaning their volume remains stable under pressure. Utility gases and SIP (Steam-in-Place) steam behave entirely differently. Steam sizing logic requires complex thermodynamic calculations. You must account for vapor expansion, specific volume changes, and temperature fluctuations across the valve port.
Flow coefficient (Cv) serves as the universal language of fluid control. It allows engineers to compare capacities across different global manufacturers objectively. European standards utilize the metric equivalent (Kv). You can easily convert between the two using the standard conversion: Cv = 1.156 × Kv.

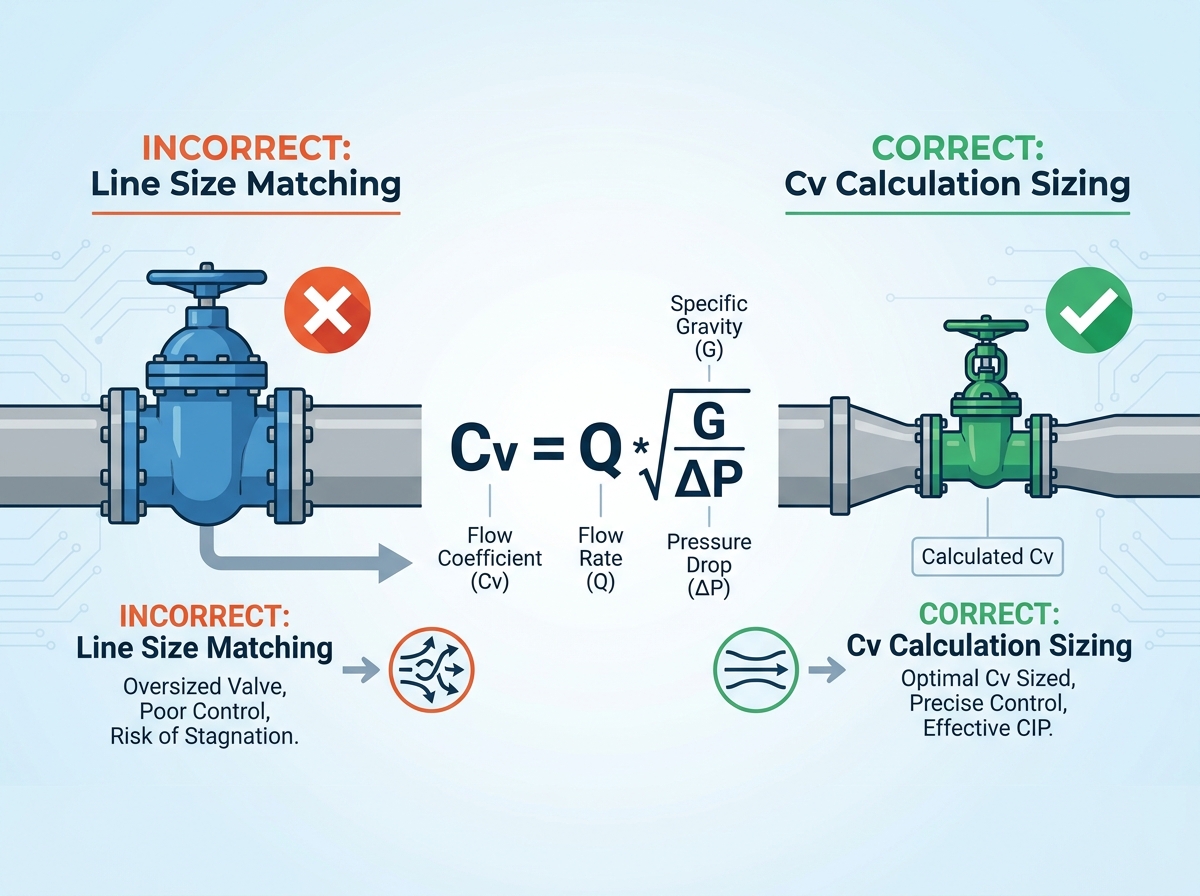

The standard liquid sizing formula forms the backbone of your evaluation. It reads: Cv = Q √(G / ΔP). In this equation, Q represents your flow rate in gallons per minute. G signifies the fluid's specific gravity. ΔP stands for the pressure drop across the valve in pounds per square inch (PSI).
Selecting the right ΔP requires engineering judgment. A common industry rule of thumb exists for control valves. The valve should absorb roughly 15% to 33% of the total system pressure drop. This allocation ensures the valve maintains adequate control authority over the fluid.
However, implementation reality differs from textbook theory. You must never assign arbitrary ΔP values. A pressure drop assigned too high causes flashing or cavitation. A pressure drop assigned too low makes the valve unresponsive to control loop signals. You must strike a careful balance based on actual pump curves and pipe friction.
The chart below outlines common pressure drop scenarios and their corresponding system impacts.
Pressure Drop Allocation | Control Authority | System Impact & Risk Profile |
|---|---|---|
Below 10% | Poor / Sluggish | Valve fails to regulate flow accurately. Prone to severe hunting. |
15% to 33% | Optimal / Stable | Smooth flow resolution. Highly responsive to automation signals. |
Above 50% | Over-restrictive | High risk of fluid shear, cavitation, and premature mechanical wear. |
Once you calculate your ideal Cv, you must select the physical geometry. Internal port design influences hygienic safety just as much as flow capacity. You must evaluate the differences between full port and reduced bore designs.
Manufacturers offer distinct internal geometries to handle varying process conditions. You should match the port design to your specific fluid behavior.
Reduced Bore: Engineers often prefer reduced ports for control valves. This design helps achieve the correct Cv without utilizing excessively small internal components. It provides excellent throttling capabilities for standard viscosity fluids.
Full Port: Highly viscous products demand full port designs. High-purity transfer lines also benefit from full bore geometries. Furthermore, any pipeline requiring mechanical pigging strictly mandates a full port layout.
Your calculated valve size will frequently be smaller than your line size. This discrepancy requires piping reducers and expanders. Transition zones create unique hygienic challenges.
Hygienic design principles dictate strict installation rules for these fittings. Eccentric reducers must be installed correctly on horizontal lines. The flat side must face the bottom of the pipe run. This orientation prevents fluid pooling and eliminates dead legs. Concentric reducers work well for vertical lines, but they trap fluids in horizontal configurations.
Your selected geometry must comply with rigorous global guidelines. ASME BPE and EHEDG standards dictate specific internal surface finishes. They mandate minimum Ra (Roughness Average) values to prevent bacterial adhesion. You must also ensure the physical design supports complete self-drainability during shutdown phases.
Fluid dynamics can destroy sanitary hardware if left unchecked. You must understand the technical parameters for predicting and mitigating adverse fluid phenomena. High-velocity failures compromise both mechanical integrity and batch sterility.
Cavitation occurs when localized pressure drops below the fluid's vapor pressure. This pressure crash creates microscopic vapor bubbles within the liquid stream. As the fluid recovers pressure downstream, these bubbles implode violently.
These implosions generate massive shockwaves. The outcomes are disastrous for sanitary components. Implosions cause severe pitting on the stainless steel valve seat. This physical damage destroys the hygienic surface finish. Once the surface pits, bacteria colonize the crevices, leading directly to cross-contamination.
Flashing presents a related but distinct threat, especially during high-temperature SIP cycles. Flashing happens when fluid drops below its vapor pressure but remains in a vapor state downstream. The liquid literally boils as it passes through the restriction.
This vapor stream acts like a sandblaster against internal components. If you cannot alter your process parameters to prevent flashing, you must adapt your hardware. You should specify hardened trim materials. Alternatively, you can utilize multi-stage anti-cavitation control valves to step the pressure down gradually.
Theoretical sizing means nothing if you procure the wrong equipment. You must translate your calculated sizing data into actionable procurement strategies. Knowing how to read a manufacturer spec sheet protects your facility from costly retrofits.
Never rely on a single maximum Cv number published in a brochure. We advise buyers to request empirical flow curves from their suppliers. You need to review both Installed and Inherent Characteristic curves.
These curves reveal how the valve performs across its entire travel range. Ensure the unit operates within the optimal 20% to 80% stroke range for your calculated normal flow. Operating below 20% risks hunting. Operating above 80% leaves no room for unexpected process surges.
You must verify the hygienic pedigree of every quoted sanitary valve. Request complete material traceability reports. You should demand FDA-compliant elastomer certificates and 316L stainless steel mill reports.
Check for formal third-party certifications. Look for 3-A Sanitary Standards or EHEDG approvals. Ensure these certifications apply specifically to the exact valve size and configuration you intend to purchase.
Take your finalized process parameters to the vendor's engineering team. Provide them with your flow rates, ΔP targets, media types, and specific gravity data. Ask them to generate a formalized sizing report. You should also request 3D CAD models to verify dimensional fitment within your piping skid.
Sizing a sanitary valve remains an iterative, highly technical process. You must balance complex fluid mechanics with uncompromising hygienic design constraints. Let us review the most critical steps you must take to ensure success.
Never default to matching valve size with pipe diameter; always calculate precise Cv requirements.
Allocate pressure drop strategically to maintain control authority without triggering cavitation.
Ensure transition fittings like eccentric reducers promote complete system drainability.
Demand empirical flow curves and verified material certificates during the procurement phase.
We encourage you to compile your process data carefully. Map out your flow rates, system pressures, and fluid properties. Consult with a certified specialist or utilize validated manufacturer software to finalize your specifications before signing any purchase orders.
A: Cv and Kv both measure flow capacity, but they use different measurement systems. Cv is the imperial standard, representing US gallons of water per minute at a 1 PSI pressure drop. Kv is the metric standard, representing cubic meters of water per hour at a 1 bar pressure drop. You can convert between them using the formula Cv = 1.156 × Kv.
A: No. Line-size matching is a fundamental engineering error, particularly for control applications. Piping is sized to minimize friction and pressure loss, while valves must create a specific pressure drop to control flow. Matching pipe size typically results in a severely oversized valve, causing erratic control and sluggish CIP velocities.
A: Viscosity fundamentally alters fluid resistance. Highly viscous fluids generate increased laminar flow resistance, meaning they do not flow as easily as water. Because standard Cv equations assume water-like behavior, viscous fluids require specific mathematical correction factors. Ignoring viscosity leads to undersized valves that choke production.
A: The practical rule of thumb dictates that a control valve should absorb between 15% and 33% of the total dynamic system pressure drop. Pushing the pressure drop beyond 50% drastically increases fluid velocity. This extreme restriction invites severe cavitation, flashing, and mechanical shear damage to sensitive process media.
