Specifying the wrong cracking pressure in a high-purity processing line is a quiet but expensive error. Process engineers often overlook this small variable until sudden flow interruptions halt production. You need exact control over system thresholds to keep fluids moving efficiently. An incorrect setting easily causes valve chatter or excessive pump wear. It also causes incomplete opening during Cleaning-in-Place (CIP) cycles. When valves fail to open fully during cleaning runs, they create dead legs. This directly risks severe cross-contamination between batches. Dealing with these hidden failures causes frustrating downtime and compromises regulatory compliance. This guide bypasses surface-level definitions to provide a deep evaluation framework. We show you how to specify the exact cracking pressure your application demands. You will learn how to balance flow efficiency and highly reliable backflow prevention perfectly.
Cracking pressure is the exact upstream differential pressure required to overcome spring tension and system backpressure to open the valve.
Selecting the right pressure requires balancing fluid viscosity, line orientation (vertical vs. horizontal), and available pump head.
Standard sanitary check valves typically feature low cracking pressures (e.g., 0.5 to 1.5 psi), but custom spring tensions are often necessary for dense media or high-backpressure applications.
CIP/SIP compliance demands that the cracking pressure allows the valve to open fully during low-viscosity cleaning cycles to prevent pooling and dead legs.

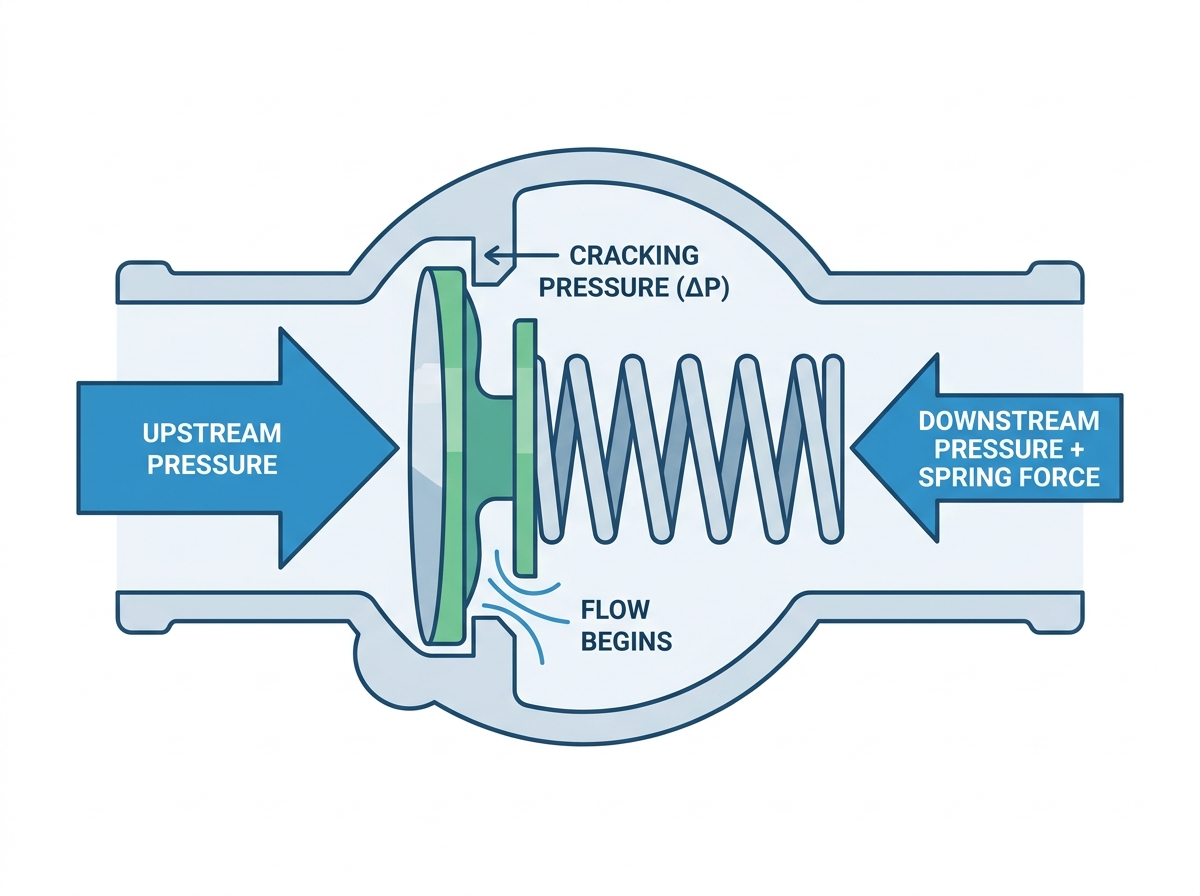

You must understand the basic physics behind a check valve before selecting one. Cracking pressure is a highly specific measurement. It represents the minimum differential pressure between the inlet and outlet. At this exact threshold, the valve disc lifts from its seat. Measurable fluid flow finally begins.
The math behind this action is straightforward. Upstream pressure must be greater than three opposing forces combined. First, you have the mechanical spring force pushing the disc shut. Second, you face downstream backpressure pushing against the outlet. Third, gravity plays a role if you install the valve vertically. The fluid will only push through once upstream energy overcomes these elements.
Unlike standard industrial hardware, a sanitary valve operates under stricter rules. It cannot rely on heavy, multi-component mechanisms to force a seal. Complex internal parts create hygienic dead zones. Instead, the spring and disc must achieve precise cracking pressure using minimal components. They must maintain a crevice-free, smooth surface finish internally. Engineers typically require a 15 to 20 Ra surface finish. This ultra-smooth design prevents bacterial adhesion. It ensures the component fully meets stringent 3-A and FDA standards.
Guessing your required spring tension introduces significant operational risks. Engineering a fluid system demands precision. Small deviations lead to massive efficiency losses over time.
An overly stiff spring restricts normal product flow. The upstream pump must work much harder to push media through the line. This excess strain leads to significant pressure drops across your facility. Downstream equipment might not receive the required fluid volumes.
The sanitary risks are equally severe. The internal disc will fail to fully open during CIP/SIP flows. Cleaning chemicals cannot flush behind the disc or spring mechanism. Soil and bacteria remain trapped inside the housing. This oversight ruins subsequent product batches.
Specifying a weak spring creates entirely different mechanical failures. You will quickly encounter a phenomenon called valve chatter. The internal disc opens and closes rapidly in turbulent flow. This violent vibration leads to premature spring fatigue. The mechanical seals will inevitably fail.
Sanitary risks also escalate when spring tension is too low. Delayed closure allows brief instances of fluid backflow. Even a momentary reversal can push unsterilized media backward. This potentially contaminates upstream product batches entirely.
Specification Error | Operational Outcome | Sanitary & Compliance Risk |
|---|---|---|
Pressure Too High | Flow restriction, severe pump strain, high pressure drop. | Incomplete CIP opening, soil retention, bacterial growth. |
Pressure Too Low | Valve chatter, rapid spring fatigue, mechanical seal failure. | Delayed closure, transient backflow, upstream batch contamination. |
You cannot select spring tension based on a simple catalog recommendation. Process engineers use a structured framework to evaluate application demands. Follow these four crucial evaluation points.
The physical installation angle dramatically alters internal forces. Gravity either helps or hinders the closing mechanism. You must evaluate this before purchasing.
Vertical lines flowing upward require lower cracking pressure springs. Gravity naturally pulls the fluid and the disc downward. This natural weight aids the closing force. Vertical lines flowing downward create the opposite challenge. The weight of the fluid constantly pushes against the disc. You require higher spring tensions here. The stiffer spring prevents the fluid weight from prematurely opening the valve.
Different fluids interact uniquely across internal valve components. Dense, viscous products require much more force to push through the line. Syrups, lotions, and heavy creams are prime examples.
These thick media already create natural resistance. Specifying a lower cracking pressure prevents excessive pressure drop. You do not want the spring fighting the pump alongside the thick fluid. Conversely, low-viscosity liquids like water or solvents flow easily. They often accommodate slightly higher spring tensions without causing disruptive pressure drops.
Your chosen cracking pressure must align directly with pump performance. Every pump operates on a specific efficiency curve. You must protect this curve.
Always subtract the check valve cracking pressure from your total pump head. Ensure downstream processes still receive adequate flow after this deduction. If your pump generates 40 PSI and your spring requires 5 PSI, you lose power. You only have 35 PSI available for downstream filters and nozzles. Evaluate this mathematical reality carefully.
Production media and cleaning fluids behave differently. The pressure required to push heavy product may differ drastically from CIP fluids. This creates a complex balancing act.
The cracking pressure must remain low enough for cleaning cycles. CIP systems rely on low-viscosity caustic chemicals and high flow rates. The valve must allow full flow-through of these lighter liquids. If the spring resists the CIP fluid, the disc only opens partially. This blocks the cleaning chemicals from thoroughly sanitizing the internal seat.
Engineers often debate between off-the-shelf and customized solutions. You must weigh convenience against specific process requirements.
Standard spring tensions provide a solid baseline for many applications. They often hover around 1 to 2 PSI. These springs work perfectly for horizontal, standard-viscosity dairy or beverage lines. Standard options offer faster procurement. They also guarantee easier replacement when maintenance schedules require new parts.
Custom or specific spring ratings address common engineering pain points. Sometimes you need exactly 1.5 PSI. Other times, an application demands a heavy-duty 10 PSI spring. High-backpressure environments frequently require these bespoke solutions.
You must consider the trade-offs of customization. Custom springs require longer lead times from manufacturers. They also demand rigorous facility validation. You must ensure the custom spring material still complies fully. It must meet USP Class VI or 3-A standards. Manufacturers typically use 316L stainless steel or specific regulatory-approved elastomers for these parts.
Transitioning from theory to procurement requires organized data. Vendors need exact specifications to match you safely with the right component.
Provide detailed operational information to hand your vendor. Better inputs yield better hardware recommendations. Gather the following data points:
Target flow rate measured in Gallons Per Minute (GPM).
The absolute maximum pressure drop your system can tolerate.
Detailed media characteristics including particulates, viscosity, and normal operating temperature.
Exact line orientation specifying Horizontal, Vertical Up, or Vertical Down configurations.
Material validation remains non-negotiable in hygiene-critical environments. You must verify both the main housing and the specific tension spring. They must meet stringent regulatory requirements. Look for explicit compliance regarding FDA CFR Title 21 and 3-A Sanitary Standards.
Finally, scrutinize the engineering design considerations carefully. Look specifically for "fully drainable" internal designs. This feature eliminates pooling during cleaning cycles. Ask if the manufacturer provides empirical flow-curve data. You need documented proof showing how their specific cracking pressures perform under load. A reliable sanitary valve supplier will readily share these performance charts.
Cracking pressure is never a set-and-forget metric. It acts as a dynamic variable dictating process efficiency and facility hygiene. Mastering this calculation prevents sudden equipment fatigue.
Always calculate differential pressure requirements before making a purchase.
Factor in line orientation, fluid viscosity, and cleaning fluid dynamics.
Avoid the dangerous assumption claiming "standard" fits all applications.
Demand verifiable flow-curve data from your chosen manufacturer.
Do not finalize your system design based on guesswork. Consult directly with a sanitary process engineer or specialized manufacturer. Bring your specific flow data and line orientation documentation. They will help you finalize a secure, high-performance specification.
A: A standard cracking pressure typically ranges between 1 to 2 psi. However, "standard" varies significantly by manufacturer and specific application design. Horizontal lines often use lower pressures, while vertical configurations may demand unique tensions.
A: Cracking pressure dictates how wide the internal disc opens. Spring resistance must remain low enough for lightweight cleaning fluids to push through. This full exposure guarantees chemicals clean the seat and spring thoroughly.
A: You typically cannot make sanitary field adjustments. You must replace the spring or the entire valve assembly. This ensures you maintain strict regulatory compliance and predictable flow physics.
A: You should install differential pressure monitoring across the fluid line. Sudden changes in upstream pressure indicate issues. Additionally, perform routine visual inspections checking for spring fatigue or disc seal damage.
