Plant engineers face a constant operational tension every single day. You must maintain absolute process hygiene at all times. Simultaneously, you need to minimize expensive mechanical downtime. Specify the wrong sealing mechanism in a sanitary valve, and you risk severe process consequences. Poor seals lead directly to dangerous product entrapment. They cause premature mechanical wear across the piping system. They also trigger massive compliance failures during Clean-in-Place (CIP) or Sterilize-in-Place (SIP) routines. Dead legs harbor bacteria. Bacteria multiply rapidly and ruin entire product batches. You simply cannot afford this hygiene risk.
The final choice between a diaphragm, O-ring, and seat seal goes far beyond simple brand preference. It depends strictly on a verifiable balance of process variables. You must carefully evaluate fluid viscosity and overall system pressure limits. You also need to account for continuous actuation frequency. Master this exact balance to keep your sterile lines running safely and profitably. We will explore exactly how to match your rigorous process constraints to the correct mechanical seal.

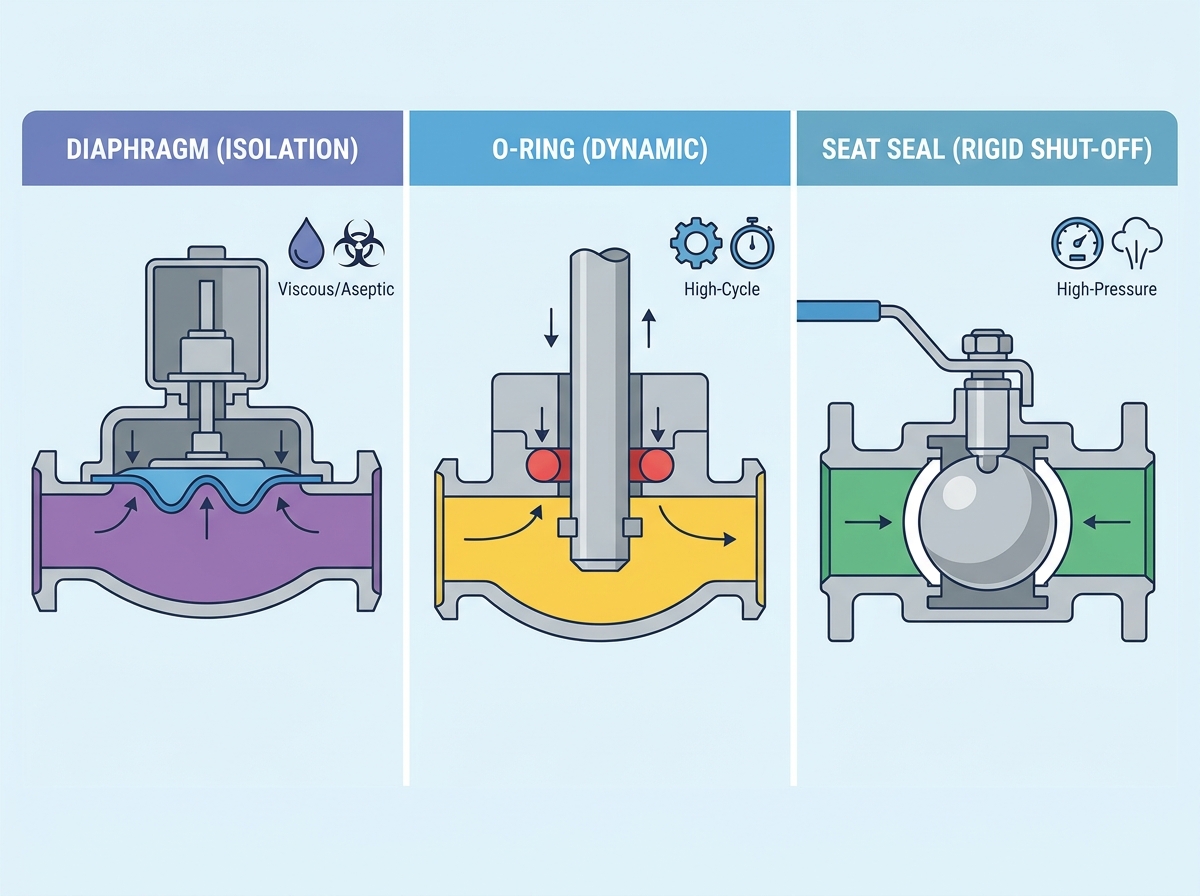

Diaphragm Seals: Isolate moving parts entirely from the product zone; optimal for ultra-pure, high-viscosity, or particulate-heavy media, but vulnerable to high-pressure blowouts.
O-Ring Seals: Provide cost-effective, highly dynamic sealing for high-cycle applications; prone to wear and require precise groove design to eliminate dead legs.
Seat Seals: Deliver rigid, reliable shut-off in high-pressure or high-temperature lines (e.g., ball or butterfly valves); harder to clean inherently without specific sanitary engineering.
Material Matrix: Mechanical design must be paired with the correct elastomer or fluoropolymer (EPDM, PTFE, FKM) to survive specific chemical exposures and temperature extremes.
How do we define an actual engineering failure at the decision stage? A failed seal might cause disastrous batch contamination. It often forces unscheduled and highly expensive maintenance shutdowns. It could even lead to failing critical FDA or USP Class VI plant audits. These negative outcomes severely disrupt daily production schedules. They damage your brand reputation permanently.
A successful seal specification achieves absolute zero dead legs. It guarantees verifiable chemical compatibility across all expected operating temperatures. It also ensures highly predictable lifecycle maintenance. You must know exactly when a functional part will physically wear out. Predictive modeling keeps your facility safe.
We must remain highly transparent about our engineering assumptions. All three main seal types can meet strict sanitary standards. Manufacturers regularly achieve 3-A or EHEDG certifications for their products. However, their mechanical operational limits differ significantly in daily practice. EHEDG tests use riboflavin to check for cleanability under UV light. A laboratory test utilizes ideal water flow. Your plant uses thicker, real-world products. Flow dynamics change drastically under these conditions. A seal might look perfectly clean in a lab but hold sticky residue in your active pipeline. We need to strictly align the physical seal's mechanical limits with our real-world plant conditions. Understanding this crucial gap prevents catastrophic field failures.
A flexible membrane physically separates the wetted area from the internal valve actuator. This intelligent design completely isolates the process media from outside contaminants. We primarily use diaphragm seals in rigorous aseptic processing environments. Modern biopharma facilities rely heavily on them. They handle thick slurries and highly viscous food products exceptionally well. Think about heavy yogurt or fruit slurries. They contain solid chunks. A flexible membrane gently pushes these chunks out of the way. It seals tight without crushing the delicate product.
However, they carry specific mechanical limitations. Diaphragm seals generally have much lower pressure tolerances compared to solid seats. They remain highly susceptible to physical rupture. Sudden system pressure spikes easily destroy them. Mechanics over-torquing flange bolts during installation also damage the delicate membrane permanently.
O-rings are simple elastomeric loops seated snugly inside a machined groove. They compress slightly to block specific fluid pathways. You will commonly find them inside stem seals and complex mix-proof routing manifolds. Engineers call this dynamic sealing. The metal stem moves up and down constantly. We use O-rings for these high actuation frequency applications. They serve utility lines and less critical hygienic zones perfectly.
Their main drawback is steady friction wear. The O-ring rubs against the metal stem thousands of times daily. You must polish the metal stem perfectly. Rough metal shreds the O-ring quickly. You risk dangerous product entrapment if the gland lacks strict sanitary tolerances. Standard industrial grooves cannot self-drain adequately.
Seat seals utilize a rigid or semi-rigid polymer ring. Manufacturers often use solid PTFE or a dense elastomer block. The valve closure member rests firmly against it to block flow. We deploy seat seals specifically for high-pressure flow control. High-pressure steam lines clean plant equipment daily. They hit 150 psi easily. Steam destroys weak elastomers quickly. Solid seat seals excel in these demanding high-temperature steam applications.
They do require much higher torque for proper mechanical actuation. Over time, the rigid seat material might deform under intense continuous pressure. This creates microscopic abrasions across the sealing face. Bacteria easily harbor inside these tiny surface scratches.
Diaphragms naturally self-drain by their inherent design. This makes your daily CIP and SIP processes straightforward. They flush completely clean without requiring complex routing routines. In stark contrast, O-ring grooves require highly precise engineering. You must design specific flushing pathways to clean them properly. Turbulent flow must reach inside the groove to sweep away residue. Valve seats also demand careful attention during rigorous cleaning cycles.
Seat seals easily outperform diaphragms in high-pressure steam lines. Rigid solid materials withstand heavy mechanical forces far better than thin flexible membranes. Diaphragms generally operate safely only below 150 psi. Seat seals can comfortably manage exceeding pressures depending directly on the metal housing structure. Always check your precise maximum line limits before specifying.
Suspended solids heavily influence your ultimate seal choice. Hard solid particulates tear fragile O-rings quickly. They gouge solid seat seals deeply, causing permanent internal leak paths. Diaphragms offer a highly unique advantage here. They can often close directly over small particulates. The soft rubber flexes around the solid chunk without suffering permanent damage.
Continuous mechanical actuation introduces rapid physical wear. O-rings handle frequent, dynamic strokes reasonably well. The process liquid often lubricates them naturally during operation. Diaphragms may suffer structural fatigue from this continuous flexing cycle. You must match the seal style directly to your actual valve cycle frequency. Intermittent processes favor diaphragms heavily.
Variable Focus | Diaphragm Seal | O-Ring Seal | Seat Seal |
|---|---|---|---|
Self-Draining Capability | Excellent (Gravity drain) | Fair (Needs engineered flush) | Good (Surface dependent) |
High Pressure Tolerance | Low (Prone to blowout) | Moderate | High (Rigid structure) |
Particulate Handling | High (Flexes over solids) | Low (Tears easily) | Low (Prone to gouging) |
Actuation Frequency Suitability | Moderate (Fatigue limits) | High (Dynamic seal) | High (Wear resistant) |
Mechanical physical design means absolutely nothing without the correct chemical material. We must strictly match the polymer directly to your process media.
EPDM stands as the undisputed industry standard for plant steam. It handles high-temperature aqueous sterilization brilliantly. EPDM easily manages temperatures up to 275°F (135°C). However, it fails rapidly in lipid or oil-heavy applications. The rubber swells massively upon direct contact with fats. It quickly degrades and sheds black particles into your pure product.
PTFE offers truly excellent chemical inertness across the board. It drastically reduces mechanical surface friction. This makes it ideal for dense valve seats and protective diaphragm shields. But PTFE completely lacks elastomeric memory. It carries a severe cold flow risk. It may permanently deform under constant heavy pressure and never bounce back.
FKM delivers exceptional high-temperature resilience continuously. It tackles fatty and highly oily media easily. Yet, you must evaluate it carefully against highly caustic cleaning chemicals. Certain hot alkaline CIP cleaners break down FKM polymers over time. You must check detailed chemical compatibility charts before installation.
Your chosen material must carry fully verified regulatory traceability. Always look for official FDA 21 CFR 177 documentation. Demand rigorous USP Class VI certifications. These strict baseline standards guarantee the polymer will not leach harmful chemical toxins into your final product. Do not compromise on regulatory paperwork.
Installation practices strongly dictate field seal survival rates. Over-tightening body fasteners causes immediate premature rupture. Plant mechanics often apply too much torque by hand. This completely crushes the delicate membrane before operation even begins. Conversely, pinching small O-rings during fast assembly creates immediate invisible micro-leaks. You must train maintenance technicians extensively. They need to apply highly precise, documented torque values using calibrated wrenches.
Relying on a reactive run-to-failure strategy remains entirely unacceptable. A single failed seal completely compromises an entire production batch. Frame your maintenance replacement intervals based firmly on actual recorded plant data. Analyze the historical field wear profiles.
Consider rigorously tracking these specific key metrics:
Total valve actuation cycle counts per week.
Maximum caustic CIP chemical exposure hours.
Peak internal steam sterilization temperatures.
Visual surface inspection results during physical teardowns.
Track these crucial metrics diligently. Replace elastomer components proactively before they ever physically degrade in the line.
Swapping seal types in existing metal bodies presents strict engineering constraints. You cannot easily upgrade from standard elastomers to advanced composite diaphragms. The metal valve housing must explicitly accommodate the new seal's exact dimensional tolerances. If you desperately need a fundamentally different seal mechanism, you often must replace the entire valve structure completely. For expert engineering guidance on system retrofitting, reach out to our team regarding your next sanitary valve project requirements.
Let us summarize the core shortlisting logic for your critical sealing options. Follow this straightforward industrial decision tree:
Select a diaphragm if your unique process remains highly aseptic and viscous.
Choose a heavy seat seal for high-pressure lines requiring rigid shutoff.
Opt for an O-ring for dynamic multi-port routing with continuous cycling.
Always strictly verify chemical compatibility against both your product and harsh cleaning agents.
Take immediate organizational action before requesting vendor quotes or detailed CAD models. Map your exact CIP and SIP temperature profiles accurately. Document your maximum expected system line pressures. Define your precise fluid chemical properties. Gathering clear operational data upfront ensures you specify the exact right component immediately.
A: A ball valve seat provides load-bearing, rigid shut-off against extremely high line pressures. It stops fluid flow entirely right across the main valve bore. An O-ring acts strictly as a dynamic stem seal. It compresses lightly inside a machined groove to prevent process media from escaping along the moving mechanical shaft. Seats handle main flow stoppage, while O-rings manage dynamic moving parts.
A: Yes, but only under highly strict design conditions. Standard industrial O-ring grooves create dangerous dead space where bacteria easily hide. To achieve a true aseptic rating, the valve must feature a specifically engineered sanitary gland. This unique design safely eliminates dead legs. It also allows aggressive CIP fluids to fully flush the entire sealing surface.
A: Premature failure typically stems directly from three main causes. First, sudden hydraulic pressure hammering drastically exceeds the flexible membrane's physical limits. Second, specifying the wrong polymer material for extreme CIP temperatures accelerates harsh chemical degradation. Third, plant technicians often apply highly incorrect torque during initial installation. This easily crushes or tears the elastomer before it even enters active service.
A: No. While PTFE provides superior broad chemical resistance and immense friction reduction, it completely lacks physical elasticity. PTFE can easily suffer from cold flow. This means it physically deforms under constant pressure without bouncing back. EPDM offers excellent memory and reliable resilience for steam and water applications. It remains far superior where dynamic flexibility is heavily required.
