Selecting the exact alloy for a sanitary valve is rarely just a basic procurement detail. It directly dictates system compliance, routine maintenance cycles, and hidden contamination risks. Plant engineers face intense pressure to balance material capabilities against strict hygienic demands. While 300-series stainless steels heavily dominate the current market, standard options do not universally apply everywhere. Complex variations in process media, Clean-in-Place (CIP) chemical aggressiveness, and extreme operating pressures require specific metallurgical profiles. Relying on an inadequate steel grade often leads to severe pitting, unexpected leaks, and disastrous product recalls. This guide explicitly breaks down the physical performance realities of 304, 316L, and Duplex alloys. We will carefully explore their distinct mechanical advantages and their inherent chemical limitations. You will learn exactly how to spec the right valve material for your specific process facility without blindly over-specifying or risking sudden, premature mechanical failure.

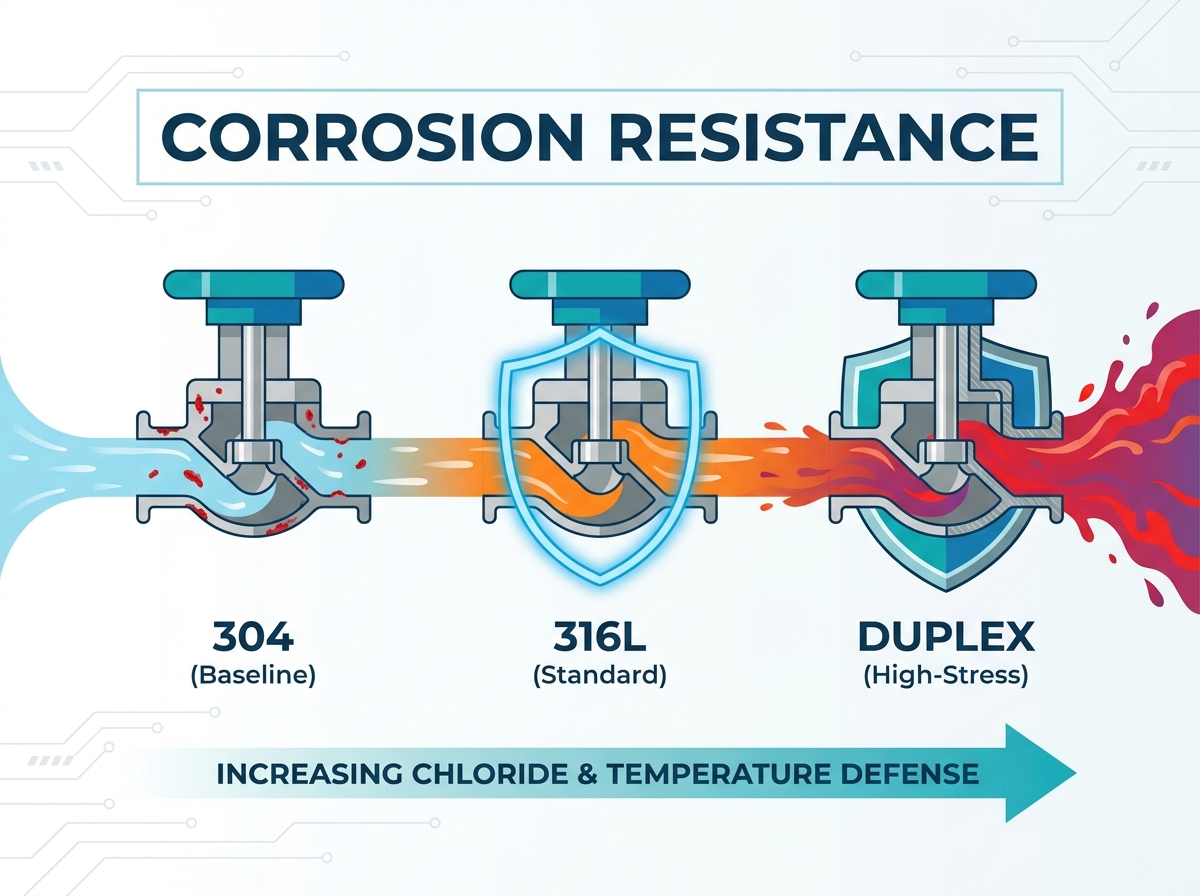

304 Stainless Steel: Best for baseline sanitary applications (e.g., dairy, brewing) with low chloride exposure and mild cleaning regimens.
316L Stainless Steel: The undisputed industry standard for pharmaceuticals, biotech, and high-purity food processing, offering superior pitting resistance and weldability.
Duplex Stainless Steel (2205): Reserved for high-stress, highly corrosive environments (e.g., reverse osmosis water, high-chloride brine) where 300-series alloys are susceptible to stress corrosion cracking.
The Bottom Line: Over-specifying drains budgets, while under-specifying leads to rouging, crevice corrosion, and unplannned downtime.
Any high-performance processing facility relies on robust sterile boundaries. Material degradation rapidly threatens this critical barrier. When alloys begin pitting or rouging, they create microscopic crevices. Bacteria easily proliferate inside these tiny surface defects. These hidden bacterial colonies compromise entire production batches. Routine cleaning cannot always penetrate these damaged surface areas. Eventually, microscopic pits expand into larger structural flaws.
Aggressive Clean-in-Place (CIP) and Sterilize-in-Place (SIP) protocols further complicate matters. Harsh chemical cleaners regularly strip away protective passive layers. Caustic washes and acidic rinses push standard metals to their physical limits. Extreme thermal cycling during high-temperature sterilization adds immense physical stress. Materials constantly expand and contract, weakening the fundamental molecular structure over time.
Regulatory bodies enforce strict compliance baselines across the industry. Organizations like the FDA, 3-A SSI, and ASME BPE set rigorous operational standards. They require processing materials to remain fully non-toxic and highly corrosion-resistant. Systems must continually maintain specific surface finish measurements, often denoted as Ra (Roughness Average). Selecting highly compliant materials ensures you pass critical facility audits and maintain seamless production.
This alloy serves as the entry-level austenitic stainless steel. Countless facilities rely on it for everyday fluid control tasks. Engineers appreciate its familiar machining characteristics and widespread availability.
Its metallurgical profile includes 18% chromium and 8% nickel. It completely lacks molybdenum in its chemical composition. This specific makeup strictly dictates its real-world performance limitations. Without molybdenum, the metal relies entirely on its chromium oxide layer for protection.
Facilities benefit from its highly cost-effective nature during large-scale plant deployments. It offers adequate general corrosion resistance for non-aggressive fluids. You can safely route municipal water, raw milk, and mild organic chemicals through these lines. Breweries frequently utilize this grade for ambient temperature wort transfer. It provides excellent longevity when managed correctly.
However, significant implementation limitations exist. The alloy remains highly vulnerable to pitting in chloride-rich environments. Exposure to saltwater or certain harsh CIP sanitizers degrades the surface immediately. You should never use it for high-purity biopharma lines. Continuous exposure to harsh acids will quickly destroy the metal, leading to dangerous leaks.
Commonly, engineers deploy this material for standard beverage transfer lines. It excels in traditional dairy processing environments. Low-pressure utility lines also represent a perfect use case. It performs reliably wherever chemical aggression remains exceptionally low.
Industry professionals consider this the upgraded, low-carbon austenitic standard. When you specify a highly reliable sanitary valve, this material often serves as the trusted default choice. It dominates the modern bioprocessing landscape.
The metallurgical profile contains 2% to 3% molybdenum. The critical "L" designation explicitly stands for Low Carbon. Carbon content is strictly capped at a maximum of 0.03%. This precise chemistry elevates its overall durability immensely.
The strategic molybdenum addition drastically improves overall surface durability. It stabilizes the passive film against chemical attacks. It provides exceptional resistance to pitting and crevice corrosion. It fiercely defends the valve body against aggressive chloride ions. Furthermore, the low carbon content fundamentally protects weld integrity. It prevents carbide precipitation during high-heat welding processes. This effectively eliminates intergranular corrosion directly at the weld seams. This feature remains strictly crucial for permanently welded fluid networks.
Despite these incredible strengths, careful engineers note specific limitations. 316L generally demands a higher initial material investment compared to standard 304. It remains somewhat susceptible to Stress Corrosion Cracking (SCC). This dangerous cracking risk emerges at elevated temperatures exceeding 60°C combined with high-chloride concentrations.
This alloy perfectly fits Water for Injection (WFI) generation systems. Active pharmaceutical ingredient (API) handling requires this exact grade for ultimate safety. Aggressive CIP and SIP loops heavily depend on its reliable performance year after year.
Duplex steel represents an advanced hybrid metallurgical alloy. Its unique microstructure combines both austenitic and ferritic phases in a nearly 50/50 split. This dual-structure approach unlocks extraordinary physical capabilities.
The complex metallurgical profile features significantly higher chromium at roughly 22%. It utilizes moderate nickel levels around 5% alongside 3% molybdenum. Nitrogen is also carefully added to increase overall strength and pitting resistance.
This unique blend delivers exceptional yield strength. It offers roughly double the mechanical strength of standard 316L. Engineers can design advanced systems utilizing thinner walls while safely handling higher pressure ratings. More importantly, it features superior SCC resistance. The underlying ferritic structure makes it highly immune to chloride-induced stress corrosion cracking. It survives environments where traditional austenitic steels shatter.
Procurement teams must navigate notable implementation realities. Duplex carries a significantly higher upfront material premium. It remains inherently harder to machine and weld correctly. Special filler metals and strict heat controls are absolutely necessary. These difficult manufacturing challenges drive up the final component price. General market availability remains lower than 300-series grades. You must anticipate longer lead times for highly specific valve configurations.
It thrives in intense Reverse Osmosis (RO) and Deionized (DI) water generation. High-salt food processing applications absolutely require this resilience. Soy sauce production and heavy brine injection systems are perfect examples. High-pressure chemical dosing environments also mandate its extreme durability.
Choosing between these distinct alloys demands a structured technical evaluation. You must carefully analyze your specific operational parameters before making a final selection.
Evaluate Chloride Levels and Media: Chloride concentration heavily dictates material survivability. Below 50 ppm, standard 304 usually suffices for basic operations. Between 50 and 200 ppm, you must upgrade to 316L to prevent rapid pitting. Above 200 ppm or at elevated temperatures, strongly consider Duplex to guarantee long-term integrity.
Assess Thermal Cycling Demands: Thermal cycling requires careful baseline evaluation. You must accurately assess peak temperatures during routine SIP. High heat actively accelerates chloride attacks on standard 300-series steels. Extreme temperature fluctuations expand the metal, stressing the crystalline structure.
Determine the Installation Method: Your chosen installation technique dictates carbon requirements. If technicians will orbitally weld the unit directly into the pipeline, you need low carbon. An "L" grade like 316L or 304L becomes absolutely mandatory. This strict requirement securely protects the final weld integrity against immediate rusting.
Industry data supports a highly transparent assumption regarding material specification. 316L represents the safest, most reliable default choice for 85% of high-purity applications. It perfectly balances essential corrosion resistance with manageable market availability. Upgrading blindly to a Duplex grade often constitutes an unnecessary financial over-investment. You should only spec Duplex if specific failure modes like SCC present a known operational risk.
Material Grade | Chloride Tolerance | Ideal Application Environment | Orbital Welding Suitability |
|---|---|---|---|
304 Stainless Steel | Low (< 50 ppm) | Standard dairy, beverage transfer, ambient water | Poor (requires 304L variant for safety) |
316L Stainless Steel | Moderate (50 - 200 ppm) | WFI, API processing, aggressive biopharma | Excellent (prevents sensitization) |
Duplex (2205) | High (> 200 ppm) | RO water, heavy brine, soy sauce production | Complex (requires specialized welding procedures) |
Global supply chains frequently obscure actual metallurgical quality. Procurement teams must remain vigilant against counterfeit and subpar processing materials. The current industrial market is heavily flooded with non-compliant alloys. A valve body merely stamped "316L" without supporting documentation represents a massive regulatory liability.
You must establish strict internal traceability protocols immediately. Always demand comprehensive Material Test Reports (MTRs) from your selected component manufacturers. Specifically, require EN 10204 3.1 certified documentation prior to installation. These critical documents verify the exact chemical composition of the poured metal. They explicitly track specific heat lots back to the original authorized foundry.
Furthermore, raw chemical makeup alone does not guarantee hygienic fluid performance. You must enforce strict surface finish verification. High-grade material remains entirely useless if the internal polishing fails inspection. Mechanical polishing or advanced electropolishing must hit precise industry metrics. Ensure the internal surface achieves an Ra < 15 µin finish. These precise parameters must strictly meet modern ASME BPE standards to prevent biological buildup.
Matching your selected alloy to your exact chemical and thermal realities is paramount. It actively prevents catastrophic product loss and maintains continuous regulatory audit readiness. Careful material specification protects your processing infrastructure from premature degradation. You must critically evaluate your internal media parameters before finalizing any system design. Understanding the distinct limits of austenitic and duplex steels keeps your production lines running safely.
Take immediate action to secure your fluid handling networks against future corrosion.
Review your current CIP chemistry data sheets closely.
Document your peak operational temperatures during routine SIP cycles.
Measure your baseline chloride concentrations in exact parts per million.
Contact a qualified specialist to thoroughly audit your current fluid control specifications.
Request a detailed component quote based exclusively on verified, MTR-backed materials.
A: It is technically possible using mechanical clamping, but experts highly discourage this practice. The 304 component immediately becomes the weakest link in your process network. It risks rapid localized corrosion upon exposure to aggressive media. This localized degradation can quickly spread free iron, compromising and contaminating the entire 316L loop.
A: The "L" specifically stands for Low Carbon. When a technician permanently welds the component to a pipeline, extreme heat normally draws carbon to the grain edges. This dangerous process, called sensitization, causes immediate rusting at the weld seam. The low carbon content strictly prevents this structural failure.
A: Yes. Common Duplex grades like 2205 fully meet FDA requirements and standard sanitary regulations. However, the raw material itself is just the starting point. The manufacturer must carefully machine and polish the finished component to meet appropriate surface roughness (Ra) standards for legal food contact.
A: Rouging can unexpectedly occur even in high-quality 316L systems. It usually stems from free iron circulating in the system, extreme high-temperature pure water (like WFI), or improper chemical passivation. This surface discoloration highlights the critical need for routine maintenance and repassivation rather than an underlying material failure.
