Water hammer is not just an acoustic nuisance in your facility. It is a highly destructive kinetic force. This sudden hydraulic shock causes catastrophic equipment failure. It also drives severe cross-contamination in beverage plants. Beverage processing lines remain uniquely vulnerable to these violent events. They experience frequent flow changes during Clean-in-Place (CIP) and Sterilize-in-Place (SIP) cycles. Rapidly shifting fluid velocities exert massive physical stress on pipes, joints, and fittings.
Preventing these pressure surges requires moving far beyond reactive fixes. You cannot simply reinforce pipe hangers and hope for the best. True prevention demands a systematic evaluation of line design and fluid velocity. You must actively manage the kinetic energy within your closed piping network. You will learn how the strategic implementation of properly sized valves and actuation controls neutralizes hydraulic shock at its source. We will explore how specific engineering choices protect both your infrastructure and your product integrity.
Business Impact: Unmitigated pressure surges lead to ruptured heat exchanger plates, blown seals, compromised hygienic boundaries, and costly unplanned downtime.
Root Cause Analysis: The primary trigger in closed beverage systems is the rapid deceleration of fluid mass, most commonly caused by fast-acting automated valves or abrupt pump starts/stops.
Solution Focus: Upgrading to a properly specified sanitary valve with adjustable closing speeds or dampening features is the most effective point-of-source mitigation strategy.
Compliance: All surge prevention equipment must maintain 3-A SSI or EHEDG compliance to avoid creating bacterial harbor points (dead legs).
Understanding hydraulic shock requires looking at the fundamental physics of your piping system. When a fluid in motion is forced to stop abruptly, its kinetic energy must go somewhere. Because liquids are generally incompressible, this energy converts instantly into a massive pressure spike. This creates a high-velocity shockwave. This wave travels backward through your piping network at the speed of sound. The resulting surge pressure multiplier can hit up to ten times your normal operating pressure.
This immense physical force aggressively damages your infrastructure. You will first notice the fatigue on pipe supports and brackets. Constant physical shifting weakens structural welds over time. However, the internal damage is much worse. Sensitive instrumentation takes a severe beating. Flow meters, pressure gauges, and delicate sensors fail prematurely under these extreme spikes. Furthermore, structural damage easily warps delicate filtration membranes. High-pressure shockwaves also easily rupture heat exchanger plates.
The contamination risk represents the greatest threat to beverage processors. A blown seal completely compromises your sterile boundary. Even tiny micro-fractures in the pipe wall invite disaster. These microscopic cracks create perfect bacterial harbor points. Proteins and sugars from beverage products lodge in these crevices. CIP chemicals cannot easily penetrate these hidden zones. Consequently, bacteria multiply rapidly. This hidden bio-burden leads directly to batch spoilage. It triggers catastrophic product recalls. Ultimately, it causes severe FDA compliance failures.
Therefore, you must view mitigation as an essential cost-avoidance strategy. Every pressure surge chips away at your operational resilience. By eliminating hydraulic shock, you prevent emergency maintenance events. You avoid the staggering costs of lost production time. Protecting your equipment ensures consistent product yield and predictable operational stability.
Standard automated equipment often operates blindly to fluid dynamics. Rapid valve actuation serves as the most common trigger for hydraulic shock. Standard pneumatic actuators are designed for speed. They often close in a fraction of a second. This closing action happens much faster than the fluid's kinetic energy can dissipate safely. As the disc or plug slams shut, the moving column of liquid crashes into the barrier. This creates an immediate, violent pressure wave.
CIP and SIP cycle transitions introduce highly complex variables. Cleaning cycles are notoriously dangerous for hydraulic stability. You constantly alternate between high-velocity water, caustic chemicals, and steam. These sudden transitions create chaotic variable pressure states. Condensation-induced water hammer happens frequently during SIP sequences. When hot steam meets cooler pipe walls, it collapses rapidly into liquid water. This rapid phase change creates an instant vacuum. Surrounding water rushes into the vacuum void at extreme speeds. The resulting collision generates a massive, localized shockwave.
Pump operations also play a major role in system instability. Sudden pump startups push heavy fluid volumes into empty or slow-moving lines. This rapid acceleration shocks the system. Conversely, abrupt pump shutdowns allow vertical fluid columns to reverse direction before check valves can react. Operating high-capacity pumps without Variable Frequency Drive (VFD) ramping guarantees trouble. Systems without VFDs cannot manage the sudden injection or removal of kinetic energy.
To accurately identify these triggers, facility operators should follow a diagnostic sequence:
Audit the timestamp logs on your Programmable Logic Controllers (PLCs).
Identify valves that close in under one second during high-flow operations.
Inspect pipe hangers near CIP return lines for physical distortion.
Listen for audible clanging or banging during automated batch transitions.

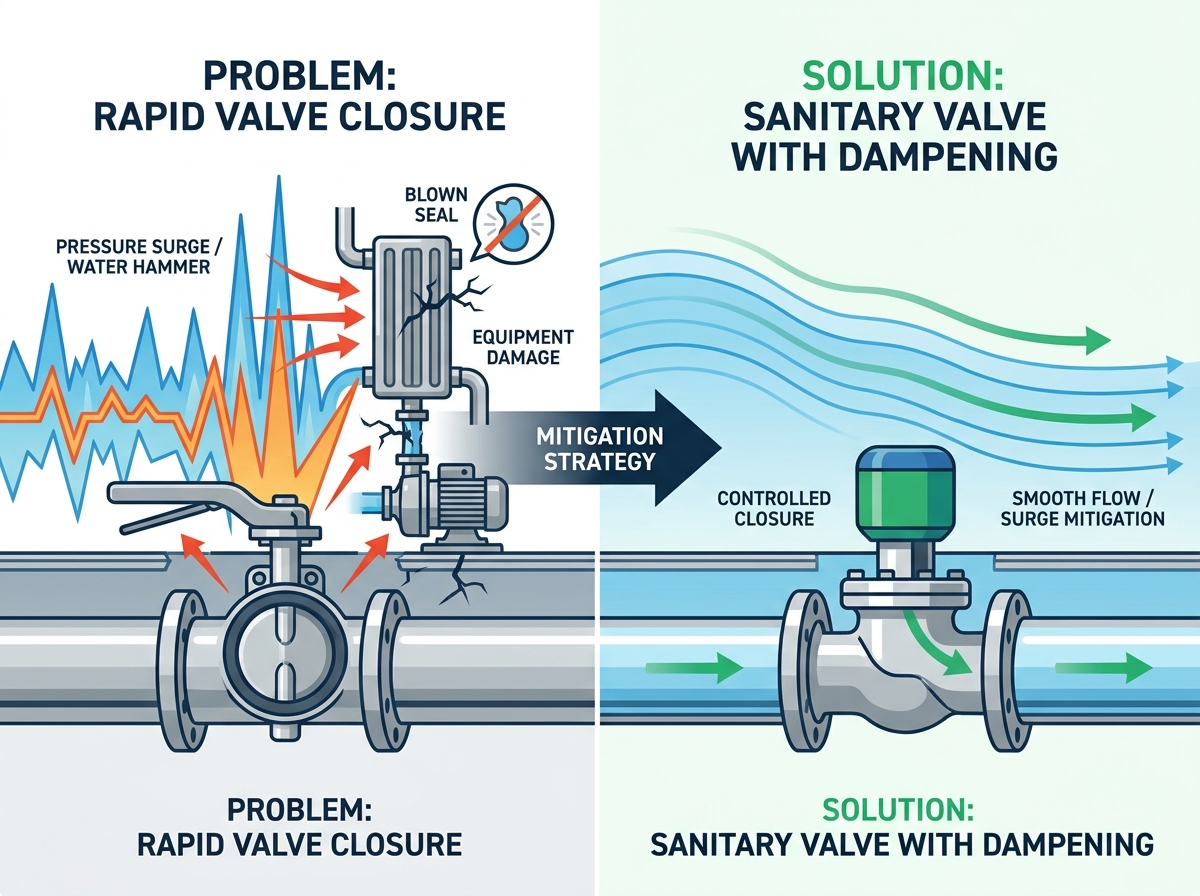

Your primary defense mechanism against fluid deceleration shock is the flow control device itself. It acts as the gatekeeper for kinetic energy. Upgrading to a properly engineered sanitary valve is the most effective point-of-source mitigation strategy available. By controlling how the barrier closes, you dictate how the energy dissipates.
Adjustable actuation speeds are completely non-negotiable for surge prevention. You must evaluate the necessity of pneumatic actuators equipped with speed controllers. These throttle components allow you to extend the closing time significantly. By extending the closure from half a second to three seconds, you bleed off the kinetic energy gradually. This soft-closure technique prevents the shockwave from ever forming.
Valve architecture dictates how flow is modulated during the final stages of closure. Different designs offer vastly different deceleration profiles. We have outlined the operational differences in the comparison chart below.
Architecture Type | Flow Modulation Profile | Surge Mitigation Rating | Best Application Use Case |
|---|---|---|---|
Standard Butterfly | Abrupt cutoff in the final 15 degrees | Low | Low-velocity transfer lines |
Single-Seat Angle | Linear flow reduction | High | High-velocity product routing |
Mixproof Double Seat | Smooth transition with dampening | Very High | Complex CIP/SIP matrices |
Diaphragm | Gradual pinch closure | Moderate | Viscous syrup handling |
Flow Coefficient (Cv) matching requires exact mathematical calculation. Many engineers mistakenly install oversized components to guarantee flow capacity. This is a dangerous practice. Oversized units act much faster than necessary. During the final moments of travel, an oversized plug drops the flow rate far too abruptly. This sudden drop heavily exacerbates surge conditions. Precise Cv matching ensures the unit uses its entire stroke length to modulate the fluid safely.
Industrial shock arrestors work well in municipal water systems. However, they are entirely inappropriate for beverage processing. Any incorporated dampeners, suppressors, or specialized flow units must feature flawless hygienic design. They require crevice-free geometries. They must also boast complete self-draining capabilities. You must verify that any installed equipment carries current EHEDG or 3-A certifications.
Material compatibility directly influences equipment survival. Valve seats face a brutal combination of forces. They endure the immense physical impact of pressure spikes. They simultaneously face the intense chemical degradation of hot CIP caustics and acids. You must evaluate your elastomer options carefully.
EPDM: Excellent for high-temperature steam and hot water, but fails quickly when exposed to fat-based beverage emulsions.
FKM: Highly resistant to fats and oils, but breaks down under prolonged exposure to certain strong CIP acids.
PTFE: Offers near-universal chemical resistance. However, it lacks natural elasticity. It requires specialized dampening mechanisms to absorb physical shock safely.
Integration with your facility automation determines your overall success. You must evaluate how the new equipment communicates with existing PLCs. A standalone mechanical fix rarely solves a complex hydraulic issue. You need staged shutdowns for safe fluid deceleration. Precise timing synchronization prevents overlapping flow conflicts between different zones. Your PLCs must coordinate pump ramping alongside actuator throttling.
When selecting anti-surge equipment, avoid these common mistakes:
Assuming one elastomer material works for both product runs and cleaning cycles.
Ignoring the surface roughness (Ra value) of internal dampening chambers.
Failing to account for the thermal expansion of PTFE components during SIP.
Retrofitting a live beverage line carries distinct engineering risks. The most severe hazard is the "dead leg" trap. Improperly installed inline surge suppressors often utilize piston or bladder designs. These mechanisms inherently create stagnant zones inside the piping. Bacteria thrive aggressively in these unwashed pockets. CIP fluids simply wash past the opening without penetrating the chamber. Installing these commercial arrestors violates critical sanitary standards and guarantees contamination.
Calibration realities dictate your process efficiency. Installing a slower-closing mechanism is only the first physical step. You must undertake comprehensive PLC reprogramming. If you slow down the actuation but fail to adjust the timing loops, you will cause cascading downstream process delays. The automation system will expect a closed signal before it actually happens. This triggers sequencing errors and aborted batches. Consulting a specialist to calibrate your sanitary valve integration ensures your software matches your new physical reality.
We strongly recommend executing a phased rollout. Never attempt a plant-wide replacement in a single weekend. You should conduct a localized hydraulic audit first. Identify your most frequent failure points. Typically, CIP return lines and long, straight product transfer runs exhibit the highest shock damage. Install the mitigated components in these high-risk zones. Monitor the pressure transducers and track maintenance data for thirty days. Prove the mitigation strategy locally before scaling the solution across the entire facility.
Here are several best practices for your phased rollout:
Map out all existing pipe hanger failures to pinpoint shockwave origins.
Install pressure transducers upstream of suspected problem zones before making changes.
Document the baseline pressure spikes to measure the success of your retrofit.
Reprogram PLC timing loops concurrently with the physical installation.
Water hammer is not an unavoidable consequence of automated beverage processing. It is a completely solvable engineering problem. Success requires that the facility properly addresses the kinetic energy of fluid in motion. By utilizing proper control mechanisms, you eliminate the destructive forces before they can multiply. You protect your infrastructure and secure your hygienic boundaries simultaneously.
We strongly advise process engineers to audit their highest-risk lines immediately. You should specifically target areas with frequent start-stop sequences. You must also evaluate long, unanchored pipe runs where kinetic energy builds rapidly. Addressing these zones yields the highest immediate return on your maintenance efforts.
Your next actionable step is to consult with a hygienic fluid handling specialist. They possess the engineering software to calculate exact Cv requirements. They will determine the optimal actuator closing speeds based on your system-specific flow rates and fluid viscosities. Stop treating the symptoms of hydraulic shock and start engineering the cure.
A: No. Standard commercial arrestors utilize pistons or bladders that create dead legs and cannot be cleaned via CIP. Only highly specialized, flow-through sanitary suppressors or optimized sanitary valves should be used.
A: It depends on fluid velocity and pipe length, but typically extending the closure time from 0.5 seconds to 2.5–3 seconds is enough to significantly dampen the pressure spike. This must be balanced against process timing requirements.
A: VFDs are excellent for preventing pump-induced surges during startup/shutdown, but they cannot prevent water hammer caused by a downstream valve slamming shut against high-velocity flow. Both elements must work in tandem.
