Failing to properly match valve specifications with your cleaning cycles is a costly mistake. Standard industrial valves simply cannot survive the harsh realities of Clean-In-Place (CIP) and Sterilize-In-Place (SIP) operations. If you ignore these specific physical stresses, you risk severe batch contamination. You also face failed compliance audits. Ultimately, this leads to unscheduled downtime and massive revenue loss.
Selecting the right sanitary valve requires careful balance. You must weigh chemical compatibility against extreme thermal resilience. You must also maintain strict hygienic geometry inside the piping. Standard designs often hide microscopic crevices. These crevices trap bacteria and ruin sterile environments.
This guide gives you an evidence-based framework. We will explore how to evaluate valve components properly. You will learn the importance of material science. You will understand connection integrity. We will also detail strict drainability standards. By the end, you can protect your process and guarantee continuous regulatory compliance.
Thermal vs. Chemical Stress: SIP requires seals that resist high-temperature steam degradation, while CIP demands materials that withstand aggressive acid/base chemical washdowns.
Seal Selection is Contextual: There is no universal seal. PTFE offers broad chemical resistance but struggles with thermal expansion; EPDM excels in steam but degrades with certain lipids or solvents.
Geometry Dictates Cleanliness: A sanitary valve is only compliant if its internal geometry eliminates dead legs and ensures 100% self-draining capability.
Compliance is Mandatory: Shortlisting must begin with verifiable certifications (ASME BPE, 3-A, FDA) rather than basic specification matching.

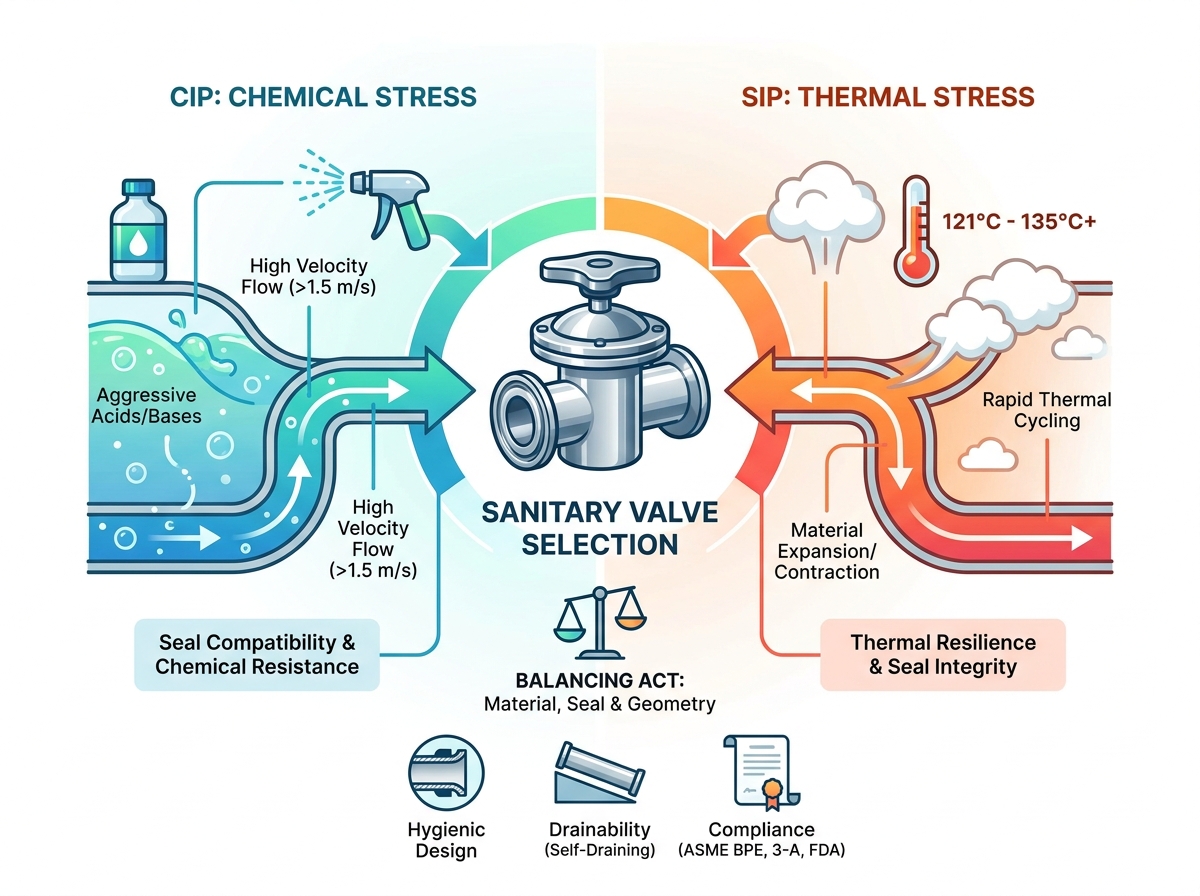

Every hygienic processing line relies on automated cleaning and sterilization. However, CIP and SIP exert entirely different physical and chemical forces on your equipment. You must define these distinct stresses before selecting any pipeline component. Misunderstanding these forces leads to premature equipment failure.
CIP relies on chemical action and mechanical force. Operators push harsh alkaline solutions and acidic rinses through the system. This removes soil, proteins, and mineral scaling. Mechanical scouring requires high fluid velocity. System pumps typically drive cleaning fluids at speeds greater than 1.5 meters per second. This high velocity ensures turbulent flow.
The evaluation criteria for a CIP-compatible sanitary valve are rigid. The internal geometry must allow unimpeded flow. Fluid must wash over every internal surface. You cannot have any "shadow areas" inside the chamber. Shadow areas slow down the fluid. When velocity drops, cleaning chemicals cannot physically scrub the surface. Proteins build up. Bacteria multiply. The entire batch becomes compromised.
SIP focuses almost entirely on extreme thermal stress. Operators introduce pure steam into the piping system. Temperatures usually range from 121°C to 135°C or higher. The steam must contact all internal surfaces for a specific duration to achieve sterilization.
This rapid heating introduces massive implementation risks. Metals and elastomers expand and contract at completely different rates. Rapid thermal cycling causes material shifts. You frequently see seal extrusion under these conditions. Micro-leaks develop during the cool-down phase. Mechanical galling occurs if tolerances are poorly engineered. Standard commercial valves buckle under this thermal shock.
Common Mistakes in CIP/SIP Implementations:
Specifying elastomers based only on ambient product temperatures.
Ignoring the thermal expansion gap between stainless steel and plastic seats.
Failing to calculate pressure drops across the valve during high-velocity CIP runs.
You cannot prevent premature degradation without evaluating metallurgy and elastomers together. No single material handles every extreme perfectly. You must balance the chemical caustics of CIP against the thermal shocks of SIP.
Engineers specify 316L stainless steel as the absolute baseline. The "L" stands for low carbon. Lower carbon prevents carbide precipitation during welding. This enhances corrosion resistance against harsh CIP caustics. Standard 304 stainless steel degrades quickly under repeated chemical washdowns.
Surface finish requirements are equally vital. You must prevent biofilm adhesion. Industry standards demand an internal surface roughness (Ra) of less than 0.4 µm, or 15 µ-inch. Manufacturers achieve this through mechanical polishing followed by electropolishing. Electropolishing dissolves microscopic peaks. It creates a smooth, passive layer. Bacteria cannot anchor onto this ultra-smooth surface.
Your seal holds the entire system together. It faces the most severe punishment. You must carefully evaluate the chemical makeup of your process fluids alongside your cleaning protocols.
EPDM: EPDM serves as the standard for continuous steam (SIP) and general CIP. It handles extreme heat cycles beautifully. It rarely becomes brittle under steam. However, we strongly warn against using EPDM around oils, fats, or specific organic solvents. Lipids cause EPDM to swell and eventually disintegrate.
PTFE (Teflon): PTFE provides near-universal chemical inertness. It resists the most aggressive CIP chemicals. However, PTFE poses mechanical risks. It suffers from "cold flow" or creep. High pressure and rapid thermal cycling cause PTFE to deform over time. It does not naturally spring back into shape like true rubber.
FKM/Viton & Silicone: These handle niche use cases. FKM resists oils and high temperatures well. Yet, it breaks down quickly when exposed to strong CIP caustics. Silicone offers high purity and flexibility. Unfortunately, silicone shows very poor resistance to high-temperature steam. It degrades and sheds particles during aggressive SIP.
You must map your exact CIP chemical concentrations and SIP peak temperatures. Use this data to finalize your seal choice. Below is a comparative look at elastomer performance.
Material | CIP (Caustics/Acids) | SIP (Steam < 135°C) | Lipid/Oil Resistance | Primary Risk Factor |
|---|---|---|---|---|
EPDM | Excellent | Excellent | Poor | Swelling in fatty products |
PTFE | Excellent | Good | Excellent | Cold flow / mechanical creep |
FKM | Poor | Good | Excellent | Degradation in strong caustics |
Silicone | Fair | Poor | Fair | Tearing under steam stress |
The highest-risk area for contamination is the interface. This is where the valve meets the piping system. If a connection traps even a microscopic amount of fluid, bacteria will bloom. You must evaluate connection points rigorously.
Tri-Clamps dominate the food and beverage sectors. They offer excellent versatility.
Pros: They allow extremely easy removal. Operators can take them apart quickly for routine maintenance. They also facilitate COP (Clean-Out-of-Place) protocols when manual scrubbing is necessary.
Risks: Torque control is historically poor on plant floors. Over-torquing crushes the elastomer. This causes gasket intrusion into the flow path. The intruding rubber creates a tiny physical dam. Soil and bacteria accumulate instantly behind this dam. Conversely, under-torquing leads to leaks. When piping cools down after an SIP thermal shift, the metal contracts. An under-torqued clamp will drip, breaking system sterility.
Biopharmaceutical plants heavily prefer welded connections. Automation ensures perfectly smooth, repeatable welds.
Pros: Orbital welding eliminates the crevice risk entirely. There is no gasket intrusion. There is no risk of loosening under vibration. It creates a permanently sterile, continuous flow path.
Risks: Welding drives up the upfront installation cost. Maintenance also becomes complex. You cannot simply unclamp the unit. You must require designs built specifically for in-line maintenance. Top-entry designs allow technicians to swap internal diaphragms without cutting the pipeline.
A dead leg is an area in a piping system where fluid stagnates. You must enforce strict dead leg constraints. Industry standards dictate an L/D (Length to Diameter) ratio of less than 2:1. Biopharma often pushes for 1.5:1 or better.
Follow these steps to eliminate dead legs at connection points:
Measure the distance from the main fluid flow to the sealing point of the branch.
Divide that length by the internal diameter of the branch pipe.
Ensure the resulting ratio never exceeds 2.0.
Redesign any T-junctions or instrument tees that fail this calculation.
If you violate this ratio, CIP fluids cannot reach the end of the cavity. High-velocity cleaning chemicals bypass the stagnant zone. The unwashed cavity contaminates subsequent batches.
Gravity remains your best defense against cross-contamination. A sanitary valve must be 100% self-draining. You cannot allow any CIP chemicals to pool inside the body. You also cannot allow condensate from SIP steam to sit in the chamber. Pooled liquids breed microorganisms rapidly.
Different geometric designs offer varying levels of hygienic performance. You must match the design to your strictness requirements.
Diaphragm Valves
Engineers view diaphragm designs as the gold standard for high-purity and pharmaceutical applications. Weir-style and block-body designs inherently eliminate dead space. The flexible diaphragm isolates the mechanical moving parts from the product zone. There are no stems or ball cavities for fluid to hide in.
However, installation geometry is critical. You must install weir-style units at a specific angle. Typically, engineers specify an angle between 15 and 30 degrees from the horizontal plane. This angle guarantees optimal draining. It allows gravity to pull every drop of condensate out of the weir channel.
Sanitary Butterfly Valves
These designs are highly cost-effective. High-volume food and beverage facilities use them extensively for CIP systems. They drain well when installed vertically.
You must note one major drawback. The central disc creates a minor flow obstruction. The fluid must split around the disc. This can cause slight pressure drops during high-velocity CIP runs. Furthermore, the stem housing relies on intense friction sealing. This friction zone can sometimes trap minute particulates.
Mixproof / Double Seat Valves
Complex automated manifolds require mixproof technology. These designs feature two independent seals separated by a leakage chamber.
They play a crucial role in continuous production. They allow simultaneous CIP of one line while actual product flows through an adjacent line. If a seal fails, the fluid drops harmlessly into the atmospheric leakage chamber. This ensures zero cross-contamination risk between the chemical wash and the consumable product.
Implementation Note: Remind your piping engineers about slope. Even the highest-rated self-draining unit will fail its intended purpose if piped at an incorrect slope. Horizontal pipe runs must maintain a consistent downward slope (typically 1/8 inch per foot) toward the drain point.
Selecting reliable equipment requires a methodical approach to vendor filtering. You must move past basic dimensional matching. You need strict operational criteria before moving to procurement.
You must demand verifiable documentation. Never accept a product vaguely labeled as "sanitary style." True hygienic equipment carries specific certifications.
Look for 3-A Sanitary Standards if you operate in the food, dairy, or beverage sectors. If you work in biopharmaceuticals, demand strict ASME BPE (Bioprocessing Equipment) compliance. ASME BPE dictates exact dimensions, metallurgy, and weld criteria. Furthermore, every elastomer and plastic part touching the fluid must have FDA CFR 21.177 compliance. Vendors must provide material test reports (MTRs) and certificates of conformance prior to shipping.
Modern CIP and SIP are fully automated processes. Manual intervention introduces unacceptable human error. Your equipment must easily integrate into sophisticated control networks.
Evaluate the actuation options. Ensure the unit easily accepts pneumatic actuators. Furthermore, it must support digital feedback sensors. Limit switches and smart positioners log verifiable proof of the opening and closing states. The control room needs digital confirmation that a port opened fully during the exact moment of the CIP chemical flush. Without automation readiness, you cannot build a reliable, auditable cleaning record.
Selecting the right equipment requires a holistic view of the entire CIP and SIP environment. You cannot simply match pipe sizes and hope for the best. The extreme thermal shocks of pure steam and the harsh caustics of chemical cleaning demand robust engineering.
We recommend specific action steps for your next procurement cycle. First, audit the most aggressive chemical and thermal extremes in your current CIP and SIP protocols. Document your exact peak temperatures and maximum fluid velocities. Second, define the necessary industry compliance standard, whether it is 3-A or ASME BPE. Finally, use these documented extremes as strict filters. Request detailed vendor technical sheets and match them against your actual operational stresses.
A: Standard steam cycles usually cap around 135°C. EPDM excels here and easily handles continuous exposure to 135°C steam. PTFE also tolerates these temperatures but poses a risk of cold flow under pressure. Standard silicone degrades quickly in high-temperature steam and should be avoided for rigorous SIP runs.
A: Yes, but with deep skepticism. Standard ball valves possess internal cavities where fluid becomes trapped, bypassing CIP velocity. You must only specify cavity-filled or encapsulated seat sanitary ball valves. Even then, they are significantly less preferred than diaphragm valves for truly high-purity or pharmaceutical applications.
A: There is no universal answer. Replacement frequency depends entirely on SIP cycle frequency, chemical concentrations, and operating pressure. A facility running aggressive daily CIP/SIP may replace seals every six months. Facilities running milder, infrequent cycles may last years. Track preventive maintenance data to establish custom intervals.
A: A dead leg is a stagnant pipeline branch where fluid pools. It is defined by the L/D (Length to Diameter) ratio. Industry rules require an L/D ratio of less than 2:1. Standard T-junctions often fail this requirement, meaning high-velocity CIP fluids cannot reach and clean the stagnant cavity.
