Clean-in-Place (CIP) and Sterilize-in-Place (SIP) operations stand as the absolute backbone of modern hygienic manufacturing. They actively protect pharmaceutical, biotech, and food processing environments from catastrophic biological hazards. Yet, even the most advanced cleaning protocols frequently overlook their weakest mechanical links.
Valves act as the most common points of failure within these complex piping systems. A single incorrect specification routinely leads to compromised batches. You face failed regulatory audits and massive unplanned downtime. Preventing these disastrous scenarios requires moving far beyond basic spec sheets. You must understand the exact mechanical and thermal stresses these components endure during aggressive cleaning cycles.
You will learn how to identify the hidden causes of flow crevices, thermal shock, and actuator lag. We will break down exactly how purpose-built components directly mitigate process risks. Read on to master the critical criteria for evaluating your next hygienic flow control upgrade. Proper selection acts as a direct investment in your operational predictability.
Inadequate valve geometry (dead legs) and poor material compatibility are the leading causes of biological contamination and cross-batch carryover.
SIP processes expose valve seals to extreme thermal cycling, requiring specific elastomer resilience to prevent leakage and particulate shedding.
Automating valve sequencing directly reduces cycle times, but requires actuators designed to handle pressure spikes without stalling.
Evaluating a sanitary valve requires matching specific certifications (ASME BPE, FDA, 3-A) against the facility's exact chemical and thermal exposure limits.
Microscopic bacterial growth easily hides inside standard valve bodies. It rapidly destroys entire production runs. You face scrapped batches and incredibly costly product recalls. The financial impact of a single contaminated batch often dwarfs the initial equipment cost. Biofilms mature inside hidden crevices. They eventually break free and ruin downstream product purity. Protect your revenue by eliminating these hidden breeding grounds.
Poorly designed internal geometries severely restrict the flow coefficient (Cv). They physically bottleneck your entire system. This restriction forces longer chemical circulation times. You inevitably reduce your overall production capacity. Factory managers lose hundreds of hours annually waiting for sluggish cleaning cycles to finish. Optimizing flow dynamics directly restores lost manufacturing time.
Inconsistent mechanical performance ruins repeatable cleaning data. Regulatory bodies like the FDA and EMA demand strict verification. They require indisputable proof of sterility. Failing to provide this data disrupts operations entirely. Auditors scrutinize hygienic systems for any sign of unvalidated components. You must maintain strict compliance to keep your facility open and running.
Incompatible cleaning media severely scores metallic seats. Harsh chemicals quickly degrade standard elastomer seals. You spend excessive resources frequently replacing these ruined parts. Maintenance teams lose valuable hours pulling equipment off the line. Labor costs skyrocket when you constantly repair failing seals. Upgrading materials eliminates this repetitive maintenance burden.

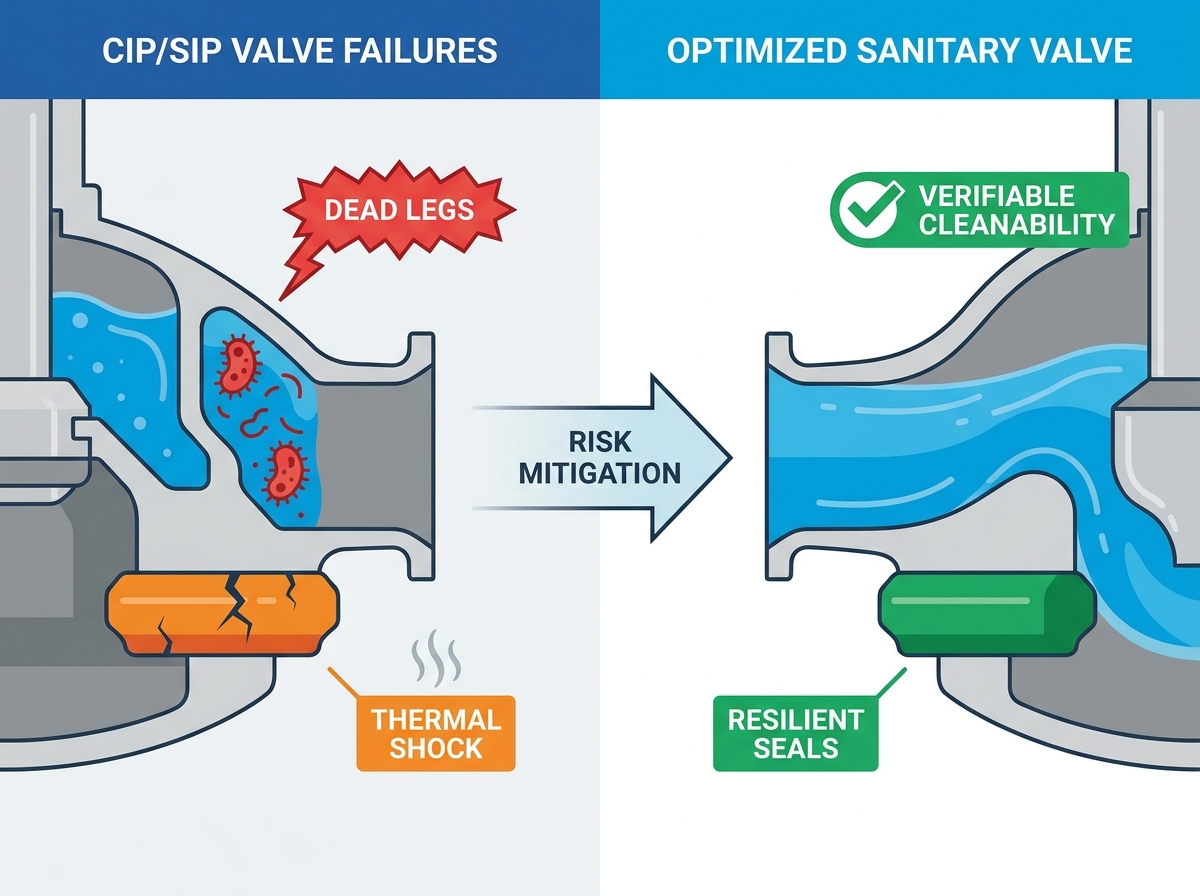

Improper internal geometry traps valuable product. It creates stagnant zones known as dead legs. These areas physically shield bacteria from high fluid velocity during washes. Laminar flow simply cannot scrub these recessed walls. Bacteria thrive and multiply rapidly in these undisturbed pockets. Standard cleaning cycles completely fail to remove them.
Success criteria: Specify models with true zero dead-leg designs. Optimize internal flow profiles to guarantee turbulent wash coverage. A high-quality sanitary valve successfully eliminates these dangerous flow crevices. Turbulent fluid dynamics actively scour the internal surfaces clean.
Fast transitions from ambient production temperatures to 121°C+ (250°F+) steam stress elastomers. PTFE and EPDM seals experience massive thermal expansion. Rapid cooling then causes abrupt contraction. This severe thermal shock literally tears or extrudes the polymer matrix. Shredded seal particulates then shed directly into your sterile product stream.
Success criteria: Match seal materials precisely to their thermal expansion coefficients. They must actively resist high-temperature steam damage. Advanced fluoropolymers maintain their structural integrity during violent temperature swings.
Particulate build-up physically prevents proper mechanical sealing. Daily mechanical wear slowly degrades the seat profile. These tiny gaps allow harsh CIP chemicals to breach active product lines. Unnoticed leaks quietly poison entire production batches. Cross-contamination represents a massive liability for food and pharmaceutical plants.
Success criteria: Implement double-seat mixproof sanitary valves. They lift seats independently to provide highly verifiable separation. Integrated leak chambers safely vent any bypassed fluids away from your product.
Fluids pool inside the body after a cleaning cycle finishes. Residual moisture creates the perfect environment for rouging corrosion. It also fuels aggressive bacterial proliferation overnight. Puddles of acidic rinse water slowly eat away at the stainless steel. Your system essentially rusts from the inside out.
Success criteria: Install the equipment at the exact manufacturer-specified drain angle. Use self-draining internal geometries. Gravity must completely clear all internal cavities before the next production run begins.
Aggressive caustics rapidly degrade standard stainless steel. Acidic sanitizers attack the passive chromium oxide layer. Moving metal parts bind and gall under intense chemical stress. Actuation becomes stiff and erratic over time. Standard 316L stainless simply cannot survive constant exposure to high-molarity cleaners.
Success criteria: Upgrade to higher-grade specialty alloys. Use AL-6XN or Hastelloy in highly corrosive zones. Demand a strict 15 Ra electropolished finish to prevent microscopic chemical pooling.
Sluggish pneumatic actuators ruin your delicate cleaning timing. Effective CIP pulsing relies on split-second open and close commands. Slow mechanical responses disrupt critical fluid routing. Water hammer destroys adjacent piping when valves close too slowly. Automation logic fails when hardware cannot keep up with PLC commands.
Success criteria: Size your actuators appropriately for system-specific pressure drops. Do not undersize them to save money. Integrate highly reliable position feedback sensors to guarantee instant confirmation.
High-velocity fluids smash into restrictive internal ports. This sudden restriction induces massive localized pressure drops. Bubbles form and collapse violently against the metal wall. This process, known as cavitation, physically pits the interior surface. Pitted surfaces harbor bacteria and accelerate metal fatigue.
Success criteria: Calculate the exact required flow coefficient (Cv) for your system. Size them correctly to maintain safe fluid velocities. Proper sizing prevents destructive pressure drops and eliminates cavitation risks.
ASME BPE and 3-A standards strictly govern acceptable surface roughness. You must demand verifiable material test reports (MTRs) for every wetted component. MTRs prove the exact metallurgical composition of the steel. Smooth surfaces prevent microbial attachment. Electropolishing removes microscopic peaks and valleys where soil hides.
You must outline strict requirements for seal materials. Demand FDA 21 CFR 177 and USP Class VI certified polymers. Emphasize complete batch traceability. You need proof verifying exactly where and how the seal was manufactured. Non-compliant elastomers leach toxic chemicals into your sensitive biological products.
Never rely on verbal promises regarding cleanability. Recommend requiring documented Riboflavin test data directly from the manufacturer. European Hygienic Engineering and Design Group (EHEDG) certification proves CIP efficacy objectively. These tests use fluorescent dyes to guarantee complete soil removal under UV light.
Evaluate the actual ease of routine seal replacement. Top-entry designs allow maintenance without removing the main body from the pipeline. You avoid cutting and re-welding pipes. Quick-release clamps significantly reduce plant downtime. Friendly maintenance profiles keep your labor expenses under control.
Evaluation Category | Standard Industrial Spec | High-Performance Hygienic Spec |
|---|---|---|
Surface Roughness (Ra) | > 32 microinches (Mechanical Polish) | 15 microinches (Electropolished) |
Elastomer Certification | Basic Industrial Grade | FDA 21 CFR 177 & USP Class VI |
Cleanability Proof | Theoretical Flow Models | Riboflavin Testing / EHEDG Certified |
Maintenance Design | Requires Pipe Removal | Top-Entry Inline Servicing |
Address the distinct challenges of retrofitting newer automated equipment into legacy systems. Older plants feature incredibly strict space constraints. Newer double-seat models often require larger vertical footprints. Careful 3D scanning prevents installation collisions. You must plan pipe routing meticulously to maintain critical drainability angles.
Modern smart positioners bring incredibly advanced diagnostics. They alert operators before mechanical failure occurs. You must discuss the integration requirements for IO-Link capabilities. Connecting these smart devices into existing PLC frameworks takes careful programming. Upgrading communication protocols ensures your facility remains competitive.
Swapping components in a validated pharmaceutical or food-grade process triggers rigorous protocols. Outline the necessary documentation phases. You must flawlessly execute Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ). Regulatory inspectors check this paperwork meticulously. Flawless change control prevents audit disasters.
Provide a rigid checklist for assessing your potential suppliers. Do they offer custom porting options for tight spaces? Assess their local engineering support capabilities. Demand complete transparency in their manufacturing lead times. Delays in critical component shipping can halt your entire facility expansion.
"Can you provide documented flow curves and cleanability test results for this specific valve model?"
"How do your actuator designs handle the specific pressure spikes of our CIP circuits?"
"Do you supply full Material Test Reports (MTRs) prior to shipment?"
"What is the actual thermal expansion limit of your standard EPDM seal?"
Encourage your facility engineers to conduct a pilot installation immediately. Request a detailed fluid dynamic analysis for your most problematic line. Isolating one bad zone proves the upgrade concept. Reach out to a specialized sanitary valve partner to review your specific chemical exposures. Taking action today prevents tomorrow's batch contamination.
Eliminating CIP/SIP bottlenecks is fundamentally tied to rigorous component selection. We must stop treating hygienic piping accessories as generic commodities. True performance relies on exact internal geometry and validated thermal resilience. Understanding fluid dynamics stops cavitation and prevents dead legs entirely.
Reiterate that upfront investment in compliant, high-performance hygienic valves yields measurable ROI. You directly save expensive batches. You achieve significantly faster turnaround times between production runs. Your facility stays completely audit-ready year-round. These operational wins easily justify the premium material upgrades.
Prompt your engineering team to audit current problem areas today. Walk the line and look for leaking stems or sluggish actuators. Document any recurring swab test failures. Consult with specialized flow control engineers immediately. They will map your thermal and chemical limits to the perfect hygienic solution.
A: Base your replacements on cycle counts and thermal exposure data, not rigid timelines. High-temperature SIP accelerates degradation rapidly. Monitor actuator feedback for stroke delays. Predictive maintenance software tracks exact cycle actuations. We recommend pulling sample seals every six months for visual inspection of extrusion or cracking.
A: Sanitary models completely lack internal crevices where bacteria hide. They feature high-purity surface finishes typically around 15 Ra electropolished. Standard industrial types ignore strict drainability angles. Hygienic variants also require FDA and USP Class VI material certifications to ensure non-toxic fluid contact.
A: Yes. They offer specific high-flow and low-pressure-drop advantages. Angle seat designs handle aggressive steam and fast pulsing exceptionally well. However, they possess a wetted stem seal. For absolute sterility requirements, diaphragm valves might still be preferred due to their complete mechanical isolation.
