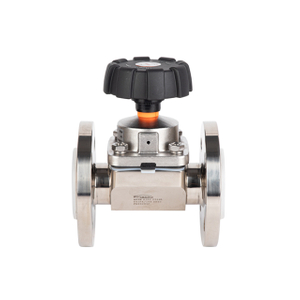

Achieving the perfect balance between precise flow control and absolute sterility remains a relentless challenge in bioprocessing, pharmaceutical, and high-purity food production. Even a microscopic pocket of trapped fluid can breed bacteria. These unseen pathogens quickly lead to catastrophic batch failures, failed regulatory audits, and severe facility downtime. To combat this inherent risk, process engineers consistently rely on the hygienic diaphragm valve. It stands as the undisputed industry-standard solution for engineering a true zero dead-leg environment.
This article serves as a decision-stage blueprint for process and maintenance professionals. We will move past basic definitions. Instead, we explore robust specification frameworks, strict material limitations, and long-term maintenance realities. You will learn exactly how to evaluate, specify, and maintain these critical components. Our goal is to help you make evidence-backed procurement decisions and confidently safeguard your high-purity systems from hidden contamination.
Isolation by Design: Only the valve body and the diaphragm contact the process fluid, effectively neutralizing mechanical cross-contamination risks.
Top-Entry Architecture: Inline maintenance capabilities allow for fully welded piping systems, reducing the reliance on sanitary clamp joints and minimizing leak paths.
Strict Operating Boundaries: While superior for sterility, these valves are strictly bound by pressure (typically ≤ 150 PSI) and temperature limits dictated by the elastomer material.
Installation Geometry Matters: Achieving true self-draining performance requires precise installation angles (typically a 2°–3° incline) to capitalize on gravity.
Process engineers frequently battle batch loss or failed regulatory audits. Hidden bacterial accumulation often drives these failures. Pathogens like Listeria and complex biofilms easily thrive inside standard valve geometries. Standard designs simply cannot guarantee true sterility. We must critically evaluate how different technologies handle high-purity demands.
Ball valves offer excellent high-flow characteristics. However, they contain inherent internal cavities. Fluid easily becomes trapped behind the rotating ball mechanism. You cannot risk these hidden voids in critical pharmaceutical dosing. Diaphragm technologies completely eliminate these hidden voids.
Many facilities specify butterfly valves. They love them because they are compact and highly affordable. Yet, butterfly valves lack strict sterile isolation. They also struggle to provide the precise throttling capabilities required for continuous, controlled dosing. They often fall short in demanding bioprocessing applications.

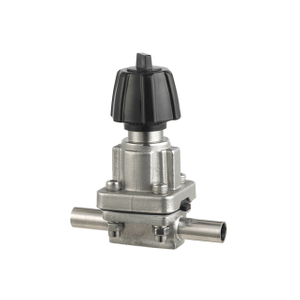

You often find seat valves deployed in utility lines. But consider fractional line sizes. This refers to the small diameter piping extremely common in biotech. In these micro-environments, seat valves become problematic. They are simply too bulky. They are also exceptionally difficult to drain fully. The straight-through or inline design of a diaphragm model offers a highly drainable, compact alternative. It fits seamlessly into dense piping skids.
Valve Type | Sterile Isolation | Drainability | Ideal Application | Primary Drawback |
|---|---|---|---|---|
Diaphragm | Excellent | High (requires precise angle) | Pharma dosing, high-purity food, zero dead-leg environments | Strict pressure and temperature limits |
Ball | Poor | Low (fluid trapped behind ball) | Unrestricted high-flow utilities, non-sterile media | Internal cavities invite biofilm growth |
Butterfly | Moderate | Moderate | Large diameter flow shutoff, bulk food transport | Lacks precise throttling and sterile isolation |
Seat | Good | Low in fractional line sizes | High-viscosity routing, larger process lines | Bulky footprint; difficult to drain in small lines |

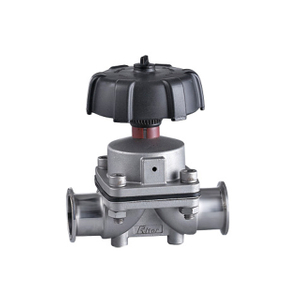

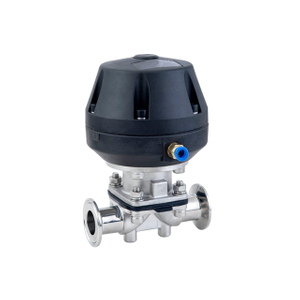

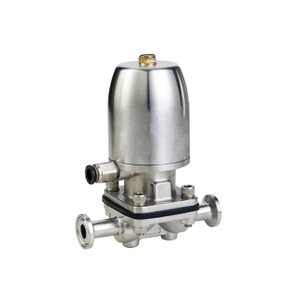

High-purity systems demand mechanical simplicity. The two-component fluid contact design provides this simplicity perfectly. Fluid only touches two internal parts. It contacts the internal valve body and the flexible elastomeric membrane. Manufacturers typically machine or forge the body from 316L stainless steel or higher alloys. The compressor and actuator remain entirely isolated above the membrane. If a mechanical component sheds metallic particulates, they cannot reach your product stream.
We must also address the top-entry maintenance advantage. You can service these units strictly from the top. This structural benefit fundamentally changes how facilities design their piping grids.
Engineering Outcome: Maintenance teams easily replace the bonnet and diaphragm. They achieve this without ever removing the valve body from the active process line.
Risk Mitigation: You can confidently design fully welded process lines. Fully welded systems drastically reduce your reliance on sanitary clamps. Sanitary clamp joints represent a common failure point for leaks and bacterial ingress. By eliminating them, you engineer out countless potential leak paths.
You must understand the difference between weir and straight-through designs. The weir-type design remains the absolute standard for pharma and food operations. A central "weir" acts as a raised barrier inside the flow path. The diaphragm pushes down against this barrier to seal the flow. This clever geometry shortens the diaphragm travel distance. Less stretching means less physical wear. Furthermore, the weir design vastly improves overall cleanability during aggressive wash cycles.
Before procuring a sanitary diaphragm valve for your facility, you must evaluate three core engineering pillars. Specifying the wrong material inevitably leads to catastrophic failure.
Valve Body Material & Porosity: The accepted industry baseline relies on 300-series stainless steel. Specifically, engineers demand 316 or 316L. If you operate high-corrosion environments, you must upgrade immediately. AL-6XN or Hastelloy C-22 provide superior resistance to aggressive saline or chemical media. Forged bodies offer significantly lower microscopic porosity than cast bodies. You can polish a forged body to ultra-high purity finishes much more reliably. This represents a critical expertise marker for process engineers.
Surface Finish Requirements: Bacteria need rough, porous surfaces to attach and multiply. Standard sanitary baselines usually require a mechanical finish between 30Ra and 35Ra. This metric often maps directly to Ra ≤ 0.8 µm. This threshold reliably prevents initial bacterial adhesion. If you design semiconductor or ultra-pure water (UPW) processes, standards tighten dramatically. These extreme applications demand an aggressive Ra ≤ 0.2 µm.
Diaphragm Material Tolerances: The flexible membrane acts as your primary defense. You must align it with your specific media.
EPDM: We consider EPDM the workhorse for bulk water and dairy production. It provides highly reliable performance. However, strong chemical solvents will quickly degrade it.
PTFE: You need PTFE for aggressive chemicals. It handles elevated temperatures beautifully, surviving up to 260°C. Process engineers heavily favor PTFE throughout modern pharmaceutical plants.
FKM / FFKM: We deploy these advanced elastomers for extreme high-purity scenarios. You will see them in semiconductor fabrication or high-fat food applications. Typical oils would rapidly destroy standard rubber components.
A hygienic component cannot drain itself without proper installation. Gravity must do the heavy lifting. You must specify the required 2° to 3° piping incline. This precise angle ensures fluids exit naturally during CIP/SIP (Clean-in-Place / Sterilize-in-Place) protocols. If you install the unit completely flat, small puddles will form. These puddles eventually breed dangerous contaminants.
Facilities constantly alternate between hot steam sterilization and cold processing. This harsh temperature swing introduces the threat of thermal cycling. Extreme thermal cycling causes the elastomer membrane to repeatedly compress and relax. This physical movement leads to the actual physical thinning of the diaphragm over time. It eventually loses its elasticity and sealing power.
You must understand the difference between external leaks and internal hidden tears. External leaks are visually obvious. Fluid spills directly onto the facility floor. Internal hidden tears pose a far more dangerous threat. They do not breach the external pressure boundary. Because the internal pressure remains stable, your online sensors will not trigger an alarm. Instead, these micro-tears create invisible traps for bacteria. This insidious growth often leads to massive, undetected batch recalls weeks later.
Installation technique directly impacts lifecycle. Over-torquing during installation physically crushes the elastomer. Operators often assume tighter is safer. This assumption is dangerously incorrect. You must emphasize following exact manufacturer torque and re-torque specifications. Correct assembly prevents premature seal destruction.
Regulatory alignment dictates your specific procurement path. You must match the specification strictly to your industry. Dairy and food applications should always look for the 3-A certification mark. Pharmaceutical processes operate under much stricter mandates. They require rigorous adherence to ASME BPE standards. These standards govern exact dimensions, surface finishes, and material traceability.
You can validate lifecycle durability via ASME BPE Appendix J. This vital industry standard helps process engineers rate the expected lifespan of elastomer seals. It specifically tests how seals endure relentless thermal fatigue. You can validate exactly how long a membrane will survive before dangerous thinning occurs.
Many components fail in the warehouse long before installation. You must enforce strict storage and handling best practices (SOPs). Proper storage guarantees optimal performance.
Stored units must be kept slightly open. Operators should apply a quick counter-clockwise turn to the handwheel. This ensures the diaphragm does not lose its elasticity due to prolonged static pressure.
Never apply grease or lubricants to the rubber lining or external diaphragm surface. Petroleum-based greases induce rapid chemical swelling. The rubber will fail prematurely upon installation.
Prohibit the use of auxiliary levers. Operators should never use wrenches or breaker bars to force manual valves closed. This excessive force destroys the internal compressor mechanism.
Process engineers cannot treat the hygienic diaphragm valve as a universal fit for all extreme pressures and temperatures. Its physical boundaries remain strictly defined by its elastomer components. However, it remains the absolute undisputed choice for achieving zero dead-leg, high-purity isolation.
Facilities must abandon arbitrary calendar dates for their maintenance routines. We strongly recommend standardizing your maintenance schedules based strictly on physical wear indicators and thermal cycle frequency. Proactive monitoring prevents hidden micro-tears and catastrophic batch contamination.
Every system operates under unique physical constraints. Always consult with a process engineering specialist or a dedicated valve supplier. You must share specific details about your media viscosity, exact CIP/SIP temperature profiles, and fractional line sizes to guarantee flawless, long-term performance.
A: Typically capped at 150 PSI, though this fluctuates based on the diaphragm material and temperature.
A: Forged stainless steel lacks the microscopic porosity found in castings, allowing it to achieve the sub-15 Ra mirror finishes required to prevent biofilm growth.
A: Replacement should be dictated by process-specific thermal cycling limits (often validated via ASME BPE Appendix J testing) rather than a flat "every six months" rule, avoiding both risk and wasted maintenance spend.
