In hygiene-critical fluid control, standard valves often introduce hidden operational hurdles. You might experience stem leaks, fluid stagnation, and excessive downtime from water hammer damage. These recurring mechanical issues disrupt production schedules and compromise strict product safety protocols.
For engineers and procurement teams in the food, beverage, and biopharma sectors, transitioning to a specialized valve architecture is an essential upgrade. Meeting strict sanitary compliance standards and handling high-cycle demands requires more than conventional rotary valve designs. Upgrading your fluid handling infrastructure ensures continuous regulatory adherence and superior system reliability.

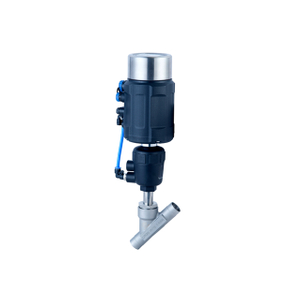

A sanitary angle seat valve utilizes a Y-pattern linear stroke design to eliminate dead space completely. It easily handles high-viscosity media and drastically outlasts traditional alternatives in harsh environments. This guide breaks down the engineering reality, evaluation criteria, and implementation risks of upgrading to an angle seat valve architecture.
Superior Flow Dynamic: The Y-pattern slant delivers up to 30% higher flow rates than standard globe designs, operating effectively even at zero differential pressure.
Better Alternative to Ball Valves: Eliminates stem packing leaks, requires less installation space, and mitigates water hammer through linear actuation.
Strict Compliance Compatibility: Engineered for Clean-in-Place (CIP) and Steam-in-Place (SIP), meeting FDA, 3-A, and ASME BPE standards with internal surface finishes of Ra < 0.8 µm (32Ra).
High-Cycle Durability: Capable of up to 1,000 cycles per hour, with lifespans stretching into the millions of cycles under ideal water and steam conditions.
Application Constraint: They are not inherently self-draining; careful system orientation is required if processing media capable of rapid microbial growth (e.g., dairy or liquid eggs).
Traditional valves frequently create internal turbulence. They trap processing media in microscopic crevices during normal daily operations. This trapped fluid inevitably leads to dangerous cross-contamination over time. Facilities often fail critical hygiene audits due to these hidden residues. Maintenance teams face frequent, frustrating pauses to disassemble and manually clean standard flow controllers. You lose valuable production hours whenever operators must intervene manually. Conventional mechanical designs simply cannot keep pace alongside modern continuous-processing demands.
System engineers developed the Y-pattern slant to resolve these exact contamination risks. The slanted seat typically sits at a 45 to 90-degree angle relative to the pipeline. This specific geometric orientation aligns the plug movement nearly parallel to the main flow path. Fluid sweeps through the cavity smoothly without hitting harsh perpendicular walls. This continuous sweeping action completely eliminates fluid stagnation zones. Internal "dead legs" within the valve body become a problem of the past. Process media flows freely without leaving organic particles behind.
Performance Outcome: The streamlined internal geometry significantly reduces the overall pressure drop. A lower pressure drop directly allows for a highly efficient Cv, or flow coefficient. Operations teams achieve up to 30% higher volumetric throughput compared to standard globe designs. The unobstructed pathway processes high-viscosity fluids seamlessly. Syrups, heavy creams, and dense lotions pass through the pipeline without clogging the mechanism. You maintain stable flow rates even when processing highly challenging substances.
Industrial lines demand rapid response times and minimal utility consumption. These slanted linear designs actuate incredibly fast. Pneumatic cylinders can comfortably handle up to 1,000 cycles per hour without overheating. Furthermore, they actuate using standard compressed air and do not require lubricated pilot lines. Eliminating lubricated air lowers routine utility maintenance and simplifies your cleanroom setups. Your operators spend less time monitoring air lines and replacing inline lubricator fluid. The streamlined actuation translates directly into robust, uninterrupted daily output.
System engineers regularly replace automated three-piece ball valves in high-stress fluid lines. You need robust alternatives for demanding hygienic applications. Conventional rotary designs often struggle under rapid cycling conditions. We see a clear engineering logic behind transitioning away from spherical closure elements. Upgrading to a linear stroke mechanism solves several inherent mechanical flaws simultaneously.
Ball valves rely heavily on traditional stem packing glands to prevent fluid escape. This packing material degrades, hardens, and eventually leaks over time. Continuous rotary friction wears down the seals during every cycle. Conversely, the slanted seat design utilizes a robust piston mechanism. It features resilient PTFE seals clamped securely within the housing. The linear upward stroke eliminates the twisting friction responsible for most seal failures. You effectively eliminate chronic stem leakage and keep your plant floors dry.
Industrial skid layouts demand highly efficient spatial planning. Automated ball valves typically utilize bulky rack-and-pinion pneumatic actuators. These large attachments require significant vertical and horizontal clearance above the pipeline. Installing them in tight manifolds often proves frustrating or physically impossible. The alternative relies on compact, vertically integrated linear pneumatic cylinder actuators. The slim cylindrical profile fits easily into dense pipe clusters. You optimize tight skid layouts without sacrificing any automated control capabilities.
Fast-closing rotary valves frequently trigger highly destructive pressure spikes. When a ball turns rapidly, it instantly halts the fluid momentum. This sudden stop creates a severe shockwave known as water hammer. These violent spikes damage delicate sensors, burst seals, and stress pipe joints. The linear stroke of a piston-driven mechanism behaves much differently. The plug closes smoothly against the flow direction. This gradual shutoff allows fluid pressure waves to dissipate safely. You protect your entire downstream infrastructure from violent hydraulic shocks.
Review the table below to understand the stark mechanical differences between these two architectures.
Engineering Feature | Automated Ball Valve | Linear Slanted Seat Design |
|---|---|---|
Seal Mechanism | Rotary friction on stem packing | Linear piston with PTFE seals |
Actuator Footprint | Large rack-and-pinion block | Compact, slim pneumatic cylinder |
Hydraulic Shock | High risk of sudden water hammer | Gradual dampening upon closure |
Viscous Handling | Prone to cavity buildup | Sweeping flow prevents clogging |
Sanitary applications require uncompromising internal surface finishes. Microbes thrive in microscopic scratches left by standard machining processes. You must verify the exact roughness specifications before approving any component. Look specifically for mechanical or electropolished internal finishes. The industry baseline demands at least 32Ra, which equates to a 150 Grit polish. For highly sensitive biopharma lines, specifications often require an Ra of less than 0.8 µm. Electropolishing removes residual iron, creating a passive, chromium-rich barrier against corrosion.
You must also map these specifications strictly to regulatory standards. Ensure the manufacturer documentation explicitly proves deep compliance. Look for the following certifications:
3-A Sanitary Standards: Essential for North American food and dairy operations.
ASME BPE: The gold standard for global biopharmaceutical equipment engineering.
EHEDG: The European baseline for hygienic engineering and sanitary design.
FDA Material Standards: Ensures all elastomers are safe for human food contact.
Raw material purity determines the ultimate lifespan of your pipeline. Standard commercial-grade steel simply cannot survive aggressive chemical washdowns. Using 316L stainless steel or cast CF3M is absolutely mandatory. The "L" denotes low carbon content, which prevents weld decay and resists harsh corrosive cleaning agents. This high-grade metallurgy guarantees strict Good Manufacturing Practice (GMP) compliance.
Sealing materials hold equal importance in high-temperature applications. Standard elastomers like EPDM degrade rapidly under live steam. PTFE, commonly known as Teflon, serves as the premier seat material. PTFE seats safely handle continuous temperatures up to 180°C (356°F). This exceptional thermal resistance remains crucial for sanitary steam applications. The seals maintain absolute integrity during intense thermal sterilization phases.
Do not ignore the external construction of the pneumatic drive head. Many commercial vendors supply plastic or standard aluminum actuator housings to save weight. These materials degrade rapidly in heavily sanitized environments. Harsh external washdowns dissolve aluminum coatings. Ultraviolet (UV) sanitization lights quickly embrittle standard plastic housings. Always evaluate and mandate stainless steel pneumatic heads. They withstand harsh chemical foaming, high-pressure spray downs, and continuous UV exposure without degrading.
Selecting the correct flow direction represents a crucial engineering nuance. System behavior changes dramatically depending on how fluid enters the housing. You must match the flow orientation to your specific process media.
Flow Under the Seat: This represents the standard orientation for most liquids and gases. Fluid pressure pushes upward against the underside of the resting piston. When the actuator signals the plug to close, it must overcome the fluid pressure. This physical resistance effectively dampens the mechanical closure speed. It naturally prevents destructive water hammer events from occurring.
Flow Above the Seat: Engineers reserve this orientation primarily for sanitary steam services. High-pressure steam enters from above, actively pushing down on the plug. The fluid pressure constantly assists the mechanical spring in keeping the port closed. This fail-safe alignment allows you to use a significantly smaller pneumatic actuator. However, it carries a higher risk of water hammer if misused with dense, incompressible liquids.
Practical engineering requires acknowledging and planning for physical limitations. These linear designs deliver exceptional performance, but you must apply them correctly.
Not Inherently Self-Draining: Unlike some specialized weir-style diaphragm valves, these slant designs are not naturally self-draining. Fluid can pool in the lower body curve if installed perfectly horizontal. If you process live microbiome applications like liquid meat or raw egg, pooling poses severe risks. Strict Clean-in-Place (CIP) validation protocols become mandatory. You must calculate precise installation angles to ensure gravity assists the drainage process completely.
Steam Cycle Degradation: Real-world operating environments rarely match perfect laboratory conditions. Manufacturers confidently cite five to ten million cycle lifespans for ambient water applications. However, high-temperature sanitary steam behaves aggressively. Continuous thermal cycling will realistically reduce the operational lifecycle of resilient PTFE seals. You must factor this thermal degradation into your preventative maintenance schedules. Replace internal soft goods proactively to prevent unexpected steam leaks.
Threaded fittings have no place in a truly hygienic fluid network. Threads create deep microscopic pockets where harmful bacteria colonize rapidly. Flanged connections pose similar risks due to flat gasket gaps. Always specify Tri-clamp, or hygienic clamp, connection ends. Tri-clamp fittings ensure true sanitary continuity across the pipeline. They utilize a specialized gasket that sits perfectly flush against the interior metal wall. This seamless junction completely eliminates thread-borne bacteria risks.
Guessing pipe diameters leads to restricted flow or uncontrollable fluid velocity. You must calculate the exact Kv or Cv values necessary to match your line size. Most sanitary applications range typically from 1/2-inch to 3-inch diameters. Proper sizing prevents fluid sheer and protects delicate suspended solids. Furthermore, verify your available pilot media pressure. The facility compressed air, water, or oil supply must match the cylinder size. The pneumatic head needs sufficient surface area to overcome maximum line pressure effectively.
Modern process control relies on robust electronic feedback networks. Do not purchase bare mechanical units if you plan to automate your facility. Look for established vendors that offer modular automation upgrades. Visual position indicators, such as brightly colored red and yellow beacons, assist manual floor inspections. Electronic position feedback sensors integrate seamlessly into your central PLC networks. Additionally, manual stroke limit bolts allow operators to set precise maximum flow regulation safely.
Use the following sizing parameters as a baseline when evaluating supplier capabilities.
Specification Category | Recommended Hygienic Standard |
|---|---|
Pipeline Connections | Tri-clamp (Seamless hygienic continuity) |
Internal Surface Polish | 32Ra (150 Grit) or Ra < 0.8 µm |
Body Metallurgy | 316L Stainless Steel / CF3M |
Maximum Temperature | 180°C / 356°F (PTFE Seats) |
Thorough documentation prevents costly regulatory failures during subsequent audits. Request highly detailed 3D CAD models before initiating any formal procurement. You need these files to verify spatial clearances on your physical skids. Furthermore, demand certified Material Test Reports (MTRs) directly from the vendors. MTRs explicitly verify the 316L alloy authenticity and guarantee the required surface finish. Validate these documents to ensure you receive authentic, compliant hardware.
Transitioning to a sanitary angle seat valve represents a strategic, long-term engineering upgrade. It specifically targets high-cycle, hygiene-critical systems experiencing chronic pressure drops, persistent stem leaks, or violent water hammer. The linear Y-pattern architecture resolves these historical pain points by eliminating dead space and streamlining fluid dynamics.
Audit your current problem areas immediately. Identify locations where automated ball valves are failing or standard CIP processes are leaving hazardous organic residue. Once you pinpoint the weak links, begin shortlisting Tri-clamp angle seat valves. Insist on verified 32Ra internal finishes and high-temperature PTFE seating. Implementing these robust components will elevate your process reliability and safeguard your hygienic integrity.
A: While primarily designed for robust on/off isolation, they can be fitted with positioning accessories. You can install stroke limit bolts or proportional positioners for rough throttling applications. However, they do not replace highly calibrated, dedicated control valves for exacting measurement tasks.
A: Flow direction fundamentally determines water hammer resistance and actuator efficiency. "Flow under seat" dampens closure speed and eliminates water hammer for fast-moving liquids. Conversely, "flow above seat" is typically reserved for steam to ensure a tight, fail-closed seal using smaller pneumatic heads.
A: Yes, they are highly suitable. Their crevice-free Y-pattern design and 316L stainless steel construction are engineered specifically for compatibility with harsh CIP chemicals. They easily withstand SIP (Steam-in-Place) high temperatures without degrading the internal PTFE seals.
