Efficient fluid control is crucial across many industries. Have you ever wondered how complex systems manage the flow of liquids, gases, and steam? Angle seat valves play a vital role in regulating fluid flow, offering advantages over traditional valve types.
In this article, we’ll explore the purpose of an angle seat valve, how it works, and its key benefits and applications.

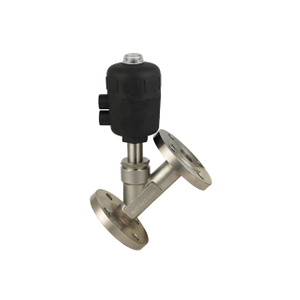

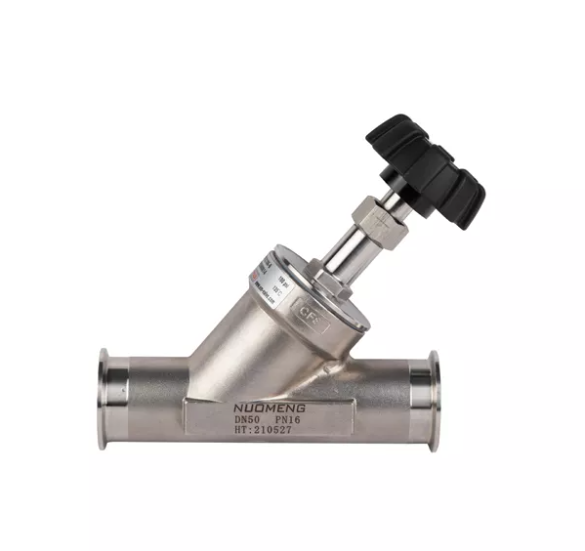

An angle seat valve is a type of valve that regulates fluid flow by using an angled valve seat, a feature that provides significant benefits in terms of fluid flow efficiency and pressure management. The term "angle seat" comes from the unique orientation of the valve’s seat, which is positioned at a 45-degree angle, helping to reduce flow resistance when the valve is open. This specific design allows the valve to achieve higher flow rates and lower pressure losses compared to other valve types.
These valves are versatile and can be operated manually, pneumatically, or electrically, depending on the application and requirements. The angle seat valve is favored in industries requiring high-flow rates, high-temperature resistance, and durability. It is ideal for applications in chemical plants, pharmaceutical manufacturing, food and beverage production, and water treatment systems, among others.
The operational principle behind an angle seat valve involves using a piston actuator to control the movement of the valve plug. When the actuator is energized—whether pneumatically or electrically—the piston or valve plug moves, lifting the valve off its seat, and allowing fluid to pass through. The valve seat is angled to ensure that the flow path is as smooth as possible when the valve is open, thus reducing flow resistance and pressure loss.
Once the actuator is de-energized, the valve plug moves back onto the seat, closing the valve and halting the flow of fluid. This mechanism allows for precise control over the fluid flow, ensuring that the valve can manage the desired fluid movement with high efficiency and reliability.
Actuator: The actuator, which can be manual, pneumatic, or electric, is responsible for controlling the valve’s opening and closing. It can be adjusted to meet the demands of the application.
Piston/Valve Plug: The piston or valve plug moves within the valve to regulate the flow of the fluid, lifting or seating to open or close the valve.
Angled Valve Seat: The seat is positioned at an angle to provide the most efficient flow path when the valve is open, minimizing flow restrictions.
Housing: Typically made from stainless steel, the housing ensures the valve is durable and resistant to corrosion, allowing it to withstand harsh environments.
An angle seat valve performs multiple crucial functions within fluid control systems. Let’s explore some of its key purposes:
One of the most significant roles of an angle seat valve is regulating the flow of fluids within a system. The angle seat valve is designed to offer high flow rates and minimal pressure loss. The angled seat reduces the flow impedance, making it possible to achieve higher flow velocities with less energy consumption. This feature makes the angle seat valve particularly advantageous for applications requiring high flow efficiency, such as chemical processing, pharmaceutical production, water treatment, and food and beverage manufacturing.
In industries where consistent fluid flow is critical, this valve type ensures that the flow remains smooth, reducing the risk of operational disruptions.
Another crucial purpose of the angle seat valve is its ability to handle fluids with high temperatures and viscosities. These valves can operate efficiently even in systems dealing with high-temperature steam, viscous oils, syrups, or other thick fluids. Many industries, such as food processing or chemical manufacturing, require valves that can endure extreme conditions while maintaining performance.
The angle seat valve is typically designed to operate in temperatures up to 200°C (392°F), making it suitable for steam sterilization, chemical dosing systems, and boiler control systems. Its robust construction ensures long-lasting durability, even when exposed to harsh environments and difficult fluid media.
Industrial systems often operate in environments where space is at a premium. The angle seat valve features a compact design that allows it to fit into tight spaces without compromising performance. This makes it ideal for installation in systems where space constraints are a concern, such as automated manufacturing plants, HVAC systems, and other industrial environments where optimizing space is a priority.
Compared to other types of valves, which may require larger installation areas, the angle seat valve’s design allows for more efficient use of space, enabling easier integration into existing systems.
One of the most attractive features of the angle seat valve is its durability. Constructed from corrosion-resistant materials, such as stainless steel, these valves are built to withstand harsh environmental conditions. They can operate continuously for millions of cycles, making them an excellent choice for applications that demand long-term reliability. Their resistance to corrosion and wear ensures that they remain functional even in the most challenging environments.
This enhanced durability means that the angle seat valve requires less frequent maintenance, reducing downtime and lowering operational costs over time.
In addition to the core functions mentioned above, there are several benefits to choosing the angle seat valve over other types of valves.
The angle seat valve is designed to offer quick, reliable operation. The actuator provides fast response times, making it ideal for systems where rapid adjustments to fluid flow are necessary. Whether in automated processes, steam control, or temperature regulation systems, the angle seat valve can open and close rapidly, providing precise control over the flow of fluids.
Another benefit of the angle seat valve is its low maintenance requirements. The valve's simple yet effective design ensures that it operates reliably over extended periods, reducing the need for frequent servicing. In systems where downtime is costly, the durability and low-maintenance nature of the angle seat valve make it an appealing option.
The angle seat valve is versatile, able to handle a wide range of applications. It is capable of regulating the flow of liquids, gases, steam, and even corrosive fluids. Its adaptability makes it suitable for use in various industries, such as chemical processing, water treatment, food and beverage, pharmaceuticals, and HVAC systems. No matter the fluid being controlled, the angle seat valve is versatile enough to handle different operational requirements.
The angle seat valve is widely used in industries that require precise fluid flow control. It is commonly employed in chemical plants, oil refineries, automated manufacturing systems, and HVAC installations. In these industries, the angle seat valve is crucial for managing high-pressure, high-temperature, and viscous fluid systems.
In water treatment and wastewater management, angle seat valves are used for controlling the flow of water, sludge, and chemicals. They help manage chemical dosing, filtration, and sludge control applications, ensuring optimal flow control and system efficiency.
In the pharmaceutical and food processing industries, the angle seat valve plays a vital role in maintaining sterile conditions and ensuring precise control over liquids, gases, and steam. From steam sterilization to chemical dosing and clean steam systems, these valves are designed to meet stringent GMP (Good Manufacturing Practice) standards, ensuring that products are processed safely and hygienically.
In HVAC systems, the angle seat valve helps control the flow of air, water, or steam, ensuring efficient temperature regulation and energy management. These valves are integral in systems such as air handling units, where they help modulate the flow of chilled or heated water to maintain optimal environmental conditions.
When selecting an angle seat valve, it’s crucial to consider several factors to ensure the valve fits your application’s needs.
The material of the angle seat valve is essential to ensure compatibility with the fluid and environment in which it will operate. Stainless steel is commonly used for its corrosion resistance and durability, while other materials like brass and bronze may be suitable for less demanding applications.
The sealing material plays an important role in the valve’s functionality. PTFE (Teflon) seals are ideal for corrosive fluids, while EPDM and FKM are commonly used for high-temperature applications. The sealing material should match the specific requirements of the fluid being controlled.
You can choose between manual, pneumatic, or electric actuation, depending on how the valve needs to operate within your system. Pneumatic actuators are often used in automated processes, while manual valves may be used in systems requiring occasional adjustments.
Choosing the appropriate size for the angle seat valve is critical to ensure optimal flow rates and pressure control. Consider the flow rate, temperature, and pressure requirements when selecting the valve size.
The angle seat valve is vital in many industries. Its efficient flow control, high-temperature resistance, and durability make it ideal for applications in chemical processing, food production, water treatment, and HVAC systems. Choosing the right angle seat valve ensures reliable operation, reduced maintenance costs, and improved system performance, even in challenging environments. Nuomeng offers high-quality angle seat valves. If you have any inquiries, feel free to consult our experts.
A: An angle seat valve is a type of valve used to control the flow of liquids, gases, or steam through a piping system. Its unique angled design allows for efficient flow and minimal pressure loss.
A: Angle seat valves offer efficient flow control, high-temperature resistance, durability, and space-saving design, making them ideal for demanding industrial applications.
A: Angle seat valves operate using a piston actuator that moves a valve plug, opening or closing the valve to regulate fluid flow. The angled seat ensures smooth flow with minimal resistance.
A: Angle seat valves are commonly used in chemical processing, food production, water treatment, HVAC systems, and other industrial applications requiring precise flow control.
