Are you looking for a valve that can handle high pressures, temperatures, and aggressive fluids? An angle seat valve might be your ideal solution. This specialized valve offers superior flow characteristics, minimizing pressure loss and maximizing efficiency.
In this post, we’ll explore the operation principle of angle seat valves, their key components, benefits, and applications in various industries.
An angle seat valve is a 2-way, 2-position valve designed to regulate the flow of various types of fluids and gases through a pipeline. Unlike traditional valves, which typically have a straight flow path, the angle seat valve features an angled seat. This design significantly reduces flow resistance when the valve is open, enabling smoother fluid movement with minimal pressure loss.
The angle seat valve operates by utilizing an actuator, which can be manual, pneumatic, or electric, to open or close the valve. The valve plug, which is controlled by the actuator, moves against or away from the angled valve seat to regulate the flow. This design allows the valve to be highly efficient, handling high flow rates and demanding conditions in various industrial processes. Angle seat valves are known for their durability and versatility, capable of handling a broad range of media, from liquids and gases to steam and aggressive chemicals.
The operation principle of angle seat valves revolves around their ability to efficiently control the flow of fluids and gases by utilizing an actuator to open and close the valve plug. Here’s a breakdown of how these valves operate:
Actuation: The actuator, which could be manual, pneumatic, or electric, moves the valve plug either away from the seat to allow flow or toward the seat to close the valve. The actuator uses mechanical or air pressure to create linear motion, which is transferred to the valve plug, facilitating the opening or closing of the valve. Pneumatic and electric actuators are used for automated systems that require rapid, frequent actuation, while manual actuators are more suited for simpler, low-frequency operations.
Opening the Valve: When the actuator moves the plug away from the seat, the valve opens, and the fluid or gas can flow through. The angle of the valve seat ensures that the flow path is largely unobstructed, resulting in minimal pressure loss and enhanced efficiency. The smooth flow characteristics of angle seat valves make them particularly suitable for applications requiring high flow rates or quick responses.
Closing the Valve: When the actuator is released or the pressure is removed, the plug is forced back against the angled seat by a spring or pressure return mechanism, sealing off the flow path and stopping the media from passing through. The tight seal ensures no leakage and prevents the flow from continuing when the valve is closed.
The angle seat valve’s unique seat angle and design ensure minimal resistance to the fluid when the valve is open, making it a highly effective option for controlling flow in a wide range of applications.
The design of the angle seat valve includes several essential components, each playing a critical role in ensuring the valve's reliable operation:
Valve Seat: The valve seat is positioned at an angle, typically around 45 degrees, which helps reduce flow resistance and pressure loss when the valve is open. This angled design ensures that the fluid flows smoothly through the valve, enhancing its efficiency. The seat also plays a key role in sealing the valve when it is closed, preventing leaks and ensuring the integrity of the system.
Actuator: The actuator controls the movement of the valve plug. It can be manual, pneumatic, or electric, depending on the application. Manual actuators are operated by hand, while pneumatic and electric actuators are used in automated systems for faster and more efficient control. Pneumatic actuators use compressed air to create movement, while electric actuators use motors to generate mechanical force.
Plug/Disc: The plug or disc is the closure element of the valve. It interacts directly with the valve seat to control the flow of fluid. When the plug is lifted off the seat, the valve is open, and fluid can pass through. When the plug is pressed back against the seat, the valve is closed, and the flow is blocked. The design of the plug ensures a tight seal, preventing leakage when the valve is closed.
Spring Return (in Pneumatic Models): Many pneumatic angle seat valves feature a spring return mechanism, which ensures that the valve returns to its default position when the actuator is no longer engaged. This mechanism provides added reliability and ensures that the valve will automatically close or open as needed in the absence of external air pressure.
These components work together to ensure that the angle seat valve operates smoothly, efficiently regulating the flow of various media across a range of applications.
Manual angle seat valves are operated by hand using a handwheel or lever. This simple design is ideal for low-frequency applications where remote or automated control is not necessary. Manual operation offers precise control over the valve, making it suitable for systems where occasional adjustments are needed. However, manual valves can be labor-intensive and are not well-suited for high-speed or automated processes.

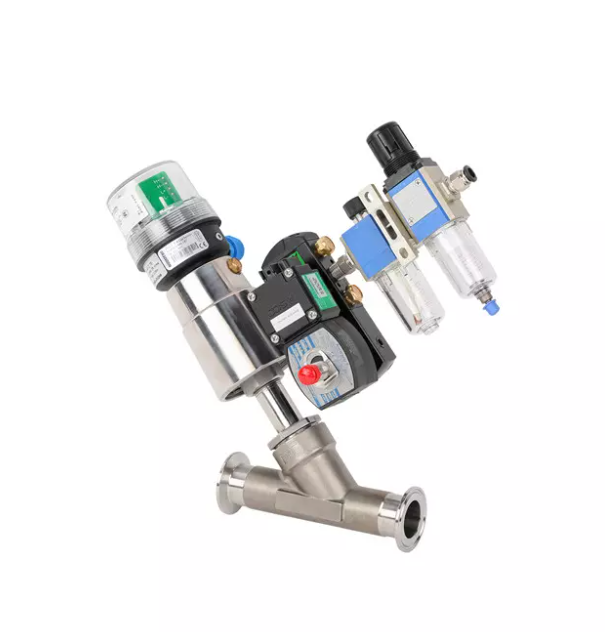

Pneumatic angle seat valves use compressed air to control the valve plug. The air pressure moves a piston within the actuator, which in turn opens or closes the valve. Pneumatic valves are highly efficient and suitable for fast-action systems, offering quick response times. These valves are often used in automated systems where rapid actuation is necessary. Pneumatic valves are particularly effective in applications involving high-pressure systems and high-flow rates, such as in chemical processing, food manufacturing, and water treatment.
Electric angle seat valves are controlled by electric actuators, which use electric motors to generate mechanical force. These valves provide highly precise control over the valve’s operation and are ideal for systems requiring exact, repeatable adjustments. Electric actuators often include feedback systems and sensors that allow for real-time monitoring and adjustments. These valves are widely used in automated processes where precise control and remote operation are necessary, such as in pharmaceutical manufacturing, HVAC systems, and complex process control applications.
The angle seat valve offers several advantages that make it an excellent choice for diverse industrial applications. Some of the key benefits include:
One of the most significant advantages of the angle seat valve is its ability to maintain high flow rates with minimal pressure loss. The valve's angled design creates a direct flow path that minimizes resistance, making it ideal for applications that require fast and efficient fluid transfer. This feature is particularly beneficial in systems where maintaining a consistent flow is critical, such as in water treatment, chemical processing, and food production.
Angle seat valves are known for their durability and long operational life. The robust construction of these valves allows them to withstand high temperatures, high pressures, and aggressive fluids. These valves can handle millions of cycles, making them suitable for industries that require reliable, long-term performance. Whether used in industrial automation, steam systems, or chemical processing, angle seat valves provide consistent and dependable operation.
Angle seat valves are highly versatile and can handle a wide variety of media, including liquids, gases, and steam. This versatility makes them suitable for a broad range of industries, from food and beverage production to oil and gas processing. The ability to handle aggressive and corrosive fluids also adds to their appeal in industries such as chemical manufacturing and pharmaceuticals.
The design and materials used in angle seat valves allow them to operate efficiently in high-temperature environments. With PTFE sealing, these valves can handle temperatures up to 200°C (392°F), making them ideal for applications involving hot water, steam, and other high-temperature media. Industries such as food processing, pharmaceuticals, and chemical manufacturing rely on angle seat valves for their ability to manage high-temperature fluid control.
The angle seat valve is used in a variety of industries due to its reliability, efficiency, and versatility. Below are some key applications where angle seat valves excel:
In the food and beverage industry, angle seat valves are used in sterilization processes, filling systems, and other critical control applications. These valves ensure that the right amount of steam or liquid flows through the system, contributing to the quality and safety of the final product. Angle seat valves provide precise flow control, essential in environments where hygiene and accuracy are paramount.
The pharmaceutical industry relies on angle seat valves for controlling clean steam systems and other processes where temperature and flow rate need to be precisely regulated. These valves help maintain sterile conditions in pharmaceutical manufacturing, ensuring product quality and compliance with stringent regulatory standards.
In the chemical industry, angle seat valves are essential for accurate chemical dosing and controlling aggressive and corrosive fluids. Their ability to withstand harsh chemicals while maintaining a tight seal makes them ideal for chemical processing applications, ensuring the smooth and efficient flow of critical materials.
Angle seat valves play a crucial role in water and wastewater treatment systems. These valves are used for sludge control, filtration, and disinfection processes, ensuring the consistent flow of water and preventing blockages. The self-draining feature of the valve reduces the risk of contamination, making it suitable for maintaining water quality.
Angle seat valves are employed in HVAC systems for controlling the flow of water, steam, and air. These valves regulate temperature and pressure in heating, ventilation, and air conditioning systems, contributing to energy efficiency and maintaining optimal environmental conditions.
While angle seat valves offer many benefits, there are a few challenges and considerations to keep in mind:
Proper installation and regular maintenance are essential for ensuring that angle seat valves function optimally. Valve installation must follow the manufacturer’s specifications to avoid leaks and ensure longevity. Regular checks, including inspecting seals and actuators, are necessary to maintain reliable performance over time.
The initial cost of angle seat valves can be higher compared to simpler valve types like ball or solenoid valves. However, their durability and long cycle life mean that they provide excellent value for money over time, especially in demanding applications where reliability and performance are essential.
Choosing the right size and material for your angle seat valve is crucial to ensure optimal performance. Factors such as the type of fluid being controlled, the operating pressure and temperature, and the required flow rate must be considered when selecting the appropriate valve.
When selecting an angle seat valve, there are several factors to consider:
Choose a valve size that suits the flow requirements of your system. Factors such as nominal diameter (DN) and Kv-value (flow rate at a pressure drop of 1 bar) should be considered. The type of connection, whether BSP, NPT, or flanged, should also be compatible with your piping system.
The material of the valve should be compatible with the media being handled. Stainless steel is often the material of choice for its corrosion resistance and durability, but other materials like brass, plastic, or bronze may be more suitable for specific applications.
Determine whether manual, pneumatic, or electric actuation is best for your application. Pneumatic and electric actuators are ideal for automated systems, while manual valves are suited for low-frequency operations.
The operation principle of angle seat valves ensures efficient flow control in many industries. These valves offer high flow rates, minimal pressure loss, and versatile media handling. They're essential for industries like food processing, pharmaceuticals, and chemical manufacturing. Understanding their design and operation helps in selecting the right valve for long-term performance and efficiency.
Nuomeng offers high-quality angle seat valves. If you have any inquiries, feel free to consult our experts.
Angle seat valves offer better flow characteristics and minimal pressure loss compared to ball valves. The angled seat design allows for smoother flow and greater efficiency.
By reducing pressure loss and maintaining high flow rates, angle seat valves optimize energy consumption, leading to lower operational costs over time.
Yes, angle seat valves are designed to handle a wide range of fluids, including aggressive and corrosive chemicals, making them suitable for industries like chemical processing and pharmaceuticals.
Regular inspection, seal checks, and actuator testing are essential for maintaining angle seat valves. Troubleshooting involves ensuring there are no leaks, the actuator is functioning correctly, and the valve is sealing properly.
