How Does a 3-Way Diaphragm Valve Work?

Imagine managing a complex fluid system in a pharmaceutical, food, or biotechnology plant — where hygiene, precision, and reliability are non-negotiable. Outdated or inappropriate valve systems can lead to contamination, loss of product, and even compliance violations. Now, what if you had a single valve that could divert, mix, or shut off flow in one compact, sanitary package?

Enter the 3-way diaphragm valve, a versatile, hygienic solution trusted across industries that demand the highest levels of cleanliness and control.

In this post, you'll learn everything you need to know about 3-way diaphragm valves — how they work, how they're used, their types, and how they compare to alternatives. We'll also analyze data and trends, introduce practical applications, and help you make the best decision for your fluid control system.

Key Takeaway

• 3-way diaphragm valves offer excellent flow control, leak-free performance, and sanitary operation.

• They are ideal for diverting or mixing flows in clean-in-place (CIP) and sterilize-in-place (SIP) systems.

• Compared to traditional valves, they reduce dead space, improve drainability, and support automated operation.

What Is a 3-Way Diaphragm Valve?

A 3-way diaphragm valve is a sanitary valve with three ports used to divert, mix, or shut off fluid flow in process systems. What makes it unique is the use of a flexible diaphragm, which isolates the actuation mechanism from the media, ensuring no contamination or leakage.

Unlike traditional ball or gate valves, the diaphragm valve uses a membrane (typically EPDM or PTFE) that presses against a weir or seat to control flow.

Core Features

NUOMENG offers several configurations including T-type, U-type, clamped, and welded options, suitable for various process requirements.

Main Types of 3-Way Diaphragm Valves

When selecting a sanitary diaphragm valve, understanding the flow configuration is key. Below are the primary types of 3-way diaphragm valves:

1. T-Port Valve

• Function: Allows mixing or splitting flow between three ports.

• Flow Pattern: All three ports can be connected simultaneously.

2. L-Port Valve

• Function: Typically used for diverting flow between two outlets.

• Flow Pattern: Two ports are connected at a time, third is closed.

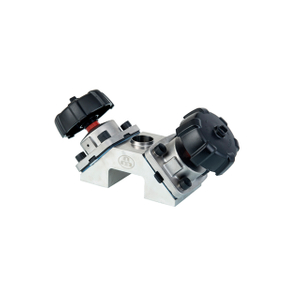

3. U-Type Diaphragm Valve (offered by NUOMENG)

• Specialty: Designed for optimal drainage, cleaning, and sterilization in compact spaces.

• Operation: Pneumatic or manual

• Compatibility: Supports CIP/SIP, has adjustable handwheel for fine control.

Comparison Table

How Does a 3-Way Diaphragm Valve Work?

The Principle

At the heart of the diaphragm valve is a flexible diaphragm that moves up and down to control the flow of fluid through the valve's ports. The valve's actuator (manual or pneumatic) moves the valve stem, which pushes the diaphragm.

• Closed Position: The diaphragm presses tightly against the valve weir, blocking flow.

• Open Position: The diaphragm lifts, allowing fluid to pass through selected ports.

Flow Scenarios

Using a U-type 3-way diaphragm valve, here are 3 main working modes:

1. Diverting Mode

• Fluid enters from Port A and is diverted to Port B or C.

• Used in batch processing or filling systems.

2. Mixing Mode

• Fluids from Port A and B flow into Port C.

• Ideal for ingredient mixing in food or pharmaceutical production.

3. Shut-Off Mode

• All ports can be isolated using a multi-seat diaphragm.

In NUOMENG's pneumatic U-type 3-way diaphragm valve, the optimized body design ensures no fluid entrapment, enhancing cleaning efficiency and preventing cross-contamination.

Key Components

• Diaphragm: EPDM/PTFE for chemical resistance and flexibility

• Valve Body: CF3M, F316L, C22, etc.

• Actuator: Pneumatic or manual

• Connection: Welded, clamped, or flanged

Applications of 3-Way Diaphragm Valves

Diaphragm valves are essential in industries where hygiene, corrosion resistance, and precision matter most. Here are the main application areas:

1. Pharmaceutical Industry

• Sterility is critical

• Used in cleanroom systems, WFI (Water for Injection), and CIP/SIP loops

2. Food & Beverage Industry

• Ideal for dairy, beer, juice, and ingredient batching

• No dead zones → prevents bacterial growth

3. Chemical Processing

• Resistant to aggressive media

• Prevents leakage and corrosion

4. Biotechnology

• Supports aseptic processes

• Used in fermentation, media preparation, and buffer systems

5. Water Treatment

• Used in ultrapure water systems

• High resistance to chlorine, ozone, and acids

Product Spotlight: NUOMENG Pneumatic U-Type 3-Way Diaphragm Valve

Technical Specifications

Need a custom solution? NUOMENG supports custom branding, OEM orders, and engineering support. Contact NUOMENG for tailored sanitary valve solutions.

Conclusion

Choosing the right 3-way diaphragm valve is essential for ensuring safe, sanitary, and efficient fluid control. Whether you're mixing, diverting, or isolating process fluids, these valves offer outstanding reliability, especially in CIP/SIP and aseptic environments.

NUOMENG's advanced U-type diaphragm valves combine cutting-edge design, premium materials, and customizable features to meet the evolving demands of high-purity industries.

If you're upgrading your fluid control system or designing a new process line, explore NUOMENG's wide range of sanitary diaphragm valves to optimize performance and ensure compliance.

FAQs

What is the difference between a 2-way and 3-way diaphragm valve?

• A 2-way diaphragm valve has two ports for simple on/off control.

• A 3-way diaphragm valve has three ports and can mix, divert, or shut off flow paths.

What materials are best for diaphragm valves?

• For chemical resistance: PTFE, C22, 904L

• For sanitary applications: F316L, EPDM/PTFE combo

Can I automate a 3-way diaphragm valve?

Yes. NUOMENG offers pneumatic actuators that allow full automation, ideal for batch processing and remote control systems.
