Vessel discharge plays a critical role in high-purity processing. A poorly specified component often acts as a primary culprit for dead legs, batch contamination, and extended Clean-in-Place (CIP) cycles. Standard industrial fittings simply cannot meet these strict hygiene demands. Standard valves leave hidden crevices where bacteria rapidly multiply.
We define the sanitary tank bottom valve as a specialized component engineered to minimize fluid retention. It offers complete drainage for reactors, fermenters, and storage vessels. This prevents cross-contamination between production runs. It also ensures safe isolation during rigorous cleaning phases.
This article explores how these engineered safeguards operate under demanding conditions. You will learn an evidence-based framework for evaluating, specifying, and implementing the right equipment for your exact process needs. We will cover core design principles, essential regulatory certifications, and actionable maintenance strategies to protect your processing investments.
Dead-leg elimination is the baseline: The core metric of a sanitary bottom valve is its ability to flush flush against the tank wall, preventing bacterial traps.
Viscosity dictates valve type: Diaphragm valves dominate aseptic pharmaceutical processes, while flush-bottom ball valves excel in high-viscosity food and chemical slurries.
Certifications require verifiable surface finishes: Compliance with 3-A, FDA, or ASME BPE requires internal contact surfaces polished to specific thresholds (typically Ra 16–32µin).
Maintenance modularity drives ROI: Advanced designs allow for valve replacement and actuator servicing without requiring complete tank drain-downs or removal.
Facility managers often view discharge valves as simple on-off switches. This perspective limits operational efficiency. Upgrading to specialized sanitary designs directly influences your daily operating costs and regulatory compliance status.
Standard gate or ball valves create internal fluid traps. When you close a standard valve, a small amount of product remains locked inside the body cavity. This trapped fluid degrades quickly. It becomes a breeding ground for biological build-up.
This biological hazard introduces severe financial impacts. Scrapped batches cost thousands of dollars in lost materials. Furthermore, regulatory bodies levy heavy compliance fines when facility audits reveal inefficient tank management. Upgrading your discharge systems eliminates these hidden fluid traps completely.
Cleaning protocols consume massive amounts of facility resources. Specialized sanitary models utilize conical shapes and precision inlet pads. These physical features accelerate drainage speeds significantly.
Faster drainage reduces the consumption of heated water. It lowers the volume of neutralizing chemicals required per cycle. Ultimately, it shaves valuable time off Clean-in-Place (CIP) and Sterilize-in-Place (SIP) cycles. You return vessels to active production faster.
Higher upfront capital expenditures (CAPEX) often deter plant engineers. However, scheduled predictive maintenance on modular bottom valves increases operational lifespan drastically. Industry data suggests up to a 40% improvement in equipment longevity. You replace fewer parts over a ten-year span. You also suffer fewer unplanned shutdown events. This reliability fully validates the initial investment.
Process media varies wildly across industries. You cannot use a one-size-fits-all approach. Viscosity, temperature, and sterility requirements dictate your optimal equipment choice.

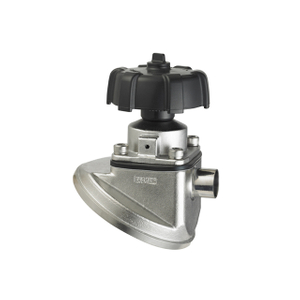

Mechanism: This design utilizes a flexible diaphragm to seal the fluid pathway. Manufacturers often combine a PTFE face with resilient backing materials. The diaphragm flexes downward to block flow. It isolates all process media from moving mechanical parts.
Best for: Aseptic pharmaceutical environments rely heavily on this style. You will find them on upstream bioreactors and fermenters. They also handle downstream chromatography and fill-finish workflows perfectly.

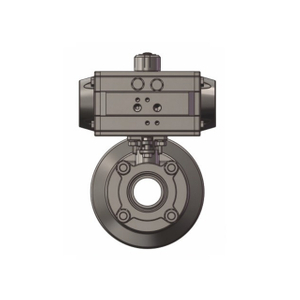

Mechanism: This style features a heavily modified inlet pad. The design minimizes the pocket area situated above the ball. When open, it provides a full-size, unobstructed port. This enables rapid, zero-residue discharge.
Best for: You need this model for dense, high-viscosity media. It excels at processing heavy syrups, edible oils, and abrasive chemical slurries.
Mechanism: These units feature a dual-seat automatic operation. A small leakage chamber separates the two seats. This allows safe separation of dissimilar fluids. It prevents accidental overpressure discharges from forcing cleaning chemicals into active product lines.
Best for: Highly automated food and beverage facilities require this technology. They need simultaneous processing and cleaning operations across adjacent tanks.
Valve Type Comparison Chart
Valve Type | Primary Sealing Mechanism | Ideal Process Media | Key Advantage |
|---|---|---|---|
Diaphragm Valve | Flexible PTFE Membrane | Aseptic Liquids, Cell Cultures | Zero internal mechanical contact |
Flush Bottom Ball Valve | Modified Full-Port Ball | Thick Syrups, Edible Oils, Slurries | Unobstructed high-volume flow |
Mixproof Valve | Dual-Seat with Leakage Chamber | Dairy, Beverage, CIP Fluids | Simultaneous cleaning and processing |
You must scrutinize microscopic design details before making a procurement decision. Regulatory inspectors look closely at surface conditions and physical installation methods.
Microbial adhesion depends entirely on surface roughness. You must define and verify acceptable thresholds. The ASME BPE SF1 standard represents a baseline for high-purity processing. It dictates an internal finish of 20 Ra µin (0.5 Ra µm).
Stringent biotech applications require even smoother surfaces. They demand SF5 (electropolished) or SF4 (15 Ra µin) ratings. Electropolishing removes microscopic peaks from the stainless steel. It leaves a passive, mirror-like finish. This repels bacterial colonization effortlessly.
Common Surface Finish Standards Chart
Standard Reference | Roughness Average (Ra) | Treatment Method | Typical Industry Use |
|---|---|---|---|
ASME BPE SF1 | 20 Ra µin (0.5 Ra µm) | Mechanical Polish | Food & Beverage, Basic Pharma |
ASME BPE SF4 | 15 Ra µin (0.38 Ra µm) | Mechanical Polish | Advanced Pharmaceuticals |
ASME BPE SF5 | 20 Ra µin (0.5 Ra µm) | Electropolished | Biotech, Injectables |
Installation orientation changes everything. Engineers frequently utilize specific installation angles. A 35-degree tilt offers immense physical benefits. It utilizes gravity to create a self-cleaning action during discharge.
This calculated angle prevents turbulence. It stops vortex creation during emptying procedures. Furthermore, it facilitates uniform mixing. When you pair an angled bottom valve with internal tank agitators, the fluid rolls smoothly across the bottom pad.
Sterilization processes introduce brutal thermal shock. Steam sterilization often pushes internal temperatures above 130°C. Standard PTFE seals deform under these conditions.
You must specify encapsulated body gaskets. Encapsulation minimizes cold flow (plastic deformation) of the seal. Additionally, look for live-loaded stem assemblies. These incorporate stacked spring washers. The springs provide active physical compensation. They expand and contract alongside the metal parts, keeping the seal permanently tight.
Your installation strategy dictates your future maintenance workflows. Smart engineering during the design phase eliminates headaches on the factory floor.
You face two primary choices for attaching the valve to the vessel. Weld-in flanges offer flush integration. They melt seamlessly into the vessel wall. This approach creates zero bacterial hideouts. However, it requires skilled orbital welders.
Conversely, Tri-Clamp or bolted connections provide rapid assembly. You can remove the entire assembly quickly. They suit applications where extreme aseptic conditions take a backseat to frequent physical tear-downs.
Many process vessels feature thick thermal jackets. They circulate cooling glycol or heating steam. These thick walls create an engineering pain point. A standard straight actuator collides with the outer jacket.
Manufacturers solve this with "angle stem" designs. The angle stem offsets the pneumatic actuator away from the vessel. It prevents spatial interference. It gives maintenance technicians plenty of room to attach air lines and sensors.
Modern equipment champions in-situ (in-place) maintenance. Open lanterns represent a massive upgrade. They provide an exposed middle section. Operators gain immediate visual leak detection. You spot a failing stem seal weeks before it breaches the sterile boundary.
Mid-body clamp designs offer another major advantage. Modern sanitary valves can be inspected and repacked easily. You can even switch their actuators. A technician can rotate the pneumatic cylinder 180 degrees. This simple action changes the behavior from Normally Closed (NC) to Normally Open (NO). You accomplish all of this without detaching the main welded body from the tank.
Procurement requires a systematic approach. Follow this evidence-based framework to narrow down your vendor options efficiently.
Map Regulatory Constraints: You must confirm non-negotiable certifications based on your end-product. Dairy and food operations strictly demand 3-A sanitary standards. Pharmaceutical and biotech lines require FDA compliance and USP Class VI certified elastomers. Do not compromise on these baseline certificates.
Match Cv Values to Process Demands: Calculate your flow coefficient (Cv). Ensure the valve rating aligns with your required discharge rates. An undersized port creates process bottlenecks. An oversized port wastes capital and takes up unnecessary vertical space.
Evaluate Automation Compatibility: Assess your pneumatic versus manual actuation needs. High-volume plants require full automation. Confirm support for intelligent control heads. Ensure the actuator accepts positional feedback sensors. These sensors feed real-time open/closed status data directly into your facility SCADA systems.
Always review your specific thermal and chemical profiles before issuing a purchase order. Consulting a manufacturer about your specific tank bottom valve configuration ensures long-term process reliability.
Sanitary tank bottom valves are not commoditized pipe fittings. They serve as highly engineered safeguards. They actively prevent batch contamination and correct process inefficiency. Your choice directly influences water consumption, cleaning cycle times, and audit readiness.
We advise engineers to audit their current tank discharge cycle times immediately. Review your recent CIP validation reports to identify hidden upgrade opportunities. Gather your specific viscosity data, pressure ratings, and temperature profiles. Take this data to specialized manufacturers. They will help you select the precise orientation, finish, and actuator style required to safeguard your production environment.
A: Yes. Modern modular designs allow for rapid in-situ replacement. You follow a brief three-step logic. First, isolate the tank and drain the flow. Second, unclamp the modular valve center body. Third, replace the internal seals or components. The welded mating flange remains securely attached to the vessel at all times, preventing costly structural modifications.
A: Standard valves create a dangerous "dead leg". This refers to a stagnant pipe section between the tank interior and the actual valve closure mechanism. Fluids sit inside this dead zone, degrading rapidly. It fosters bacterial growth that remains completely outside the reach of standard CIP cleaning jets.
A: Pharmaceutical applications generally require internal wetted surfaces polished to a strict Ra 16–32 µin threshold. This aligns with ASME BPE SF1 or SF5 standards. Manufacturers often electropolish these surfaces. Electropolishing ensures microscopic smoothness that actively repels microbial adhesion during sensitive production runs.
