Diaphragm valves are essential components in many industrial systems, known for their unique design and ability to control the flow of fluids or gases. They are particularly valuable in applications where cleanliness and hygiene are critical, making them a preferred choice in industries such as food processing, pharmaceuticals, and water treatment. This article will delve into the core functions, uses, and advantages of diaphragm valves, exploring their operation, benefits, and the industries that rely on them.
A diaphragm valve is a type of valve that uses a flexible diaphragm to regulate the flow of a substance through the valve. The diaphragm is typically made of rubber, elastomer, or other flexible materials and forms a seal against a valve seat, preventing the flow of fluids or gases. When the valve is actuated, the diaphragm moves to either open or close the flow path, providing precise control over the substance being transported.
These valves are primarily used to control the flow of liquids or gases in piping systems. Unlike other types of valves that use rotating elements such as gates or balls, diaphragm valves rely on the diaphragm's movement to provide an airtight seal. This unique feature makes them particularly suitable for applications requiring strict sanitation and where contamination control is vital.
The basic operation of a diaphragm valve involves the movement of a flexible diaphragm, which is connected to an actuator (manual, pneumatic, or electric). When the actuator is engaged, it causes the diaphragm to push against or pull away from the valve seat. This movement either opens or closes the flow passage, regulating the amount of fluid or gas that can pass through.
The diaphragm's seal is what ensures that the fluid remains contained within the pipe and does not leak. Since there are no moving parts in contact with the fluid (other than the diaphragm itself), diaphragm valves are ideal for applications involving corrosive or hazardous substances, as the diaphragm acts as a barrier between the flow and the valve mechanism.
Diaphragm valves offer several distinct advantages that make them suitable for specific applications:
Hygienic Design: The smooth surface of the diaphragm and the lack of crevices where bacteria could accumulate make diaphragm valves an excellent choice for industries requiring high levels of hygiene, such as food and beverage processing or pharmaceutical manufacturing.
Leakage Prevention: The diaphragm forms a tight seal against the valve seat, reducing the risk of leaks. This is particularly important in industries that deal with hazardous or corrosive chemicals.
Versatility: Diaphragm valves are available in various designs, including manual, pneumatic, and electric actuation, allowing them to be customized to fit the needs of different applications.
Low Maintenance: Due to the simple design of diaphragm valves, they typically require less maintenance than other valve types. The lack of moving parts in contact with the media minimizes wear and tear, ensuring a longer lifespan.
Flow Control Precision: The diaphragm valve provides excellent control over the flow of fluids, enabling fine adjustments in processes where precise flow control is essential.
Diaphragm valves are used in a wide range of industries and applications. Their versatility and hygienic design make them indispensable in systems that handle sensitive materials. Some of the most common uses include:
In water treatment plants, diaphragm valves are often employed to control the flow of water in various stages of the treatment process. The valves are used to regulate water flow, ensuring that it is treated effectively and that chemicals used in the process are added in precise quantities. Their ability to handle various chemicals without the risk of contamination is one of the reasons they are preferred in this sector.
In pharmaceutical manufacturing, the need for cleanliness and contamination control is paramount. Diaphragm valves are frequently used in processes such as the mixing of chemicals, liquid filling, and sterilization. Their design ensures that no product comes into contact with the internal valve components, which is critical in maintaining the integrity of pharmaceutical products.
In the food and beverage industry, diaphragm valves are commonly used for applications such as the mixing, filling, and transport of ingredients. Their ability to prevent contamination and maintain the purity of the substances being processed makes them a crucial component in these industries.
Diaphragm valves are also widely used in the chemical processing industry. The valves can be used to regulate the flow of aggressive chemicals, including acids and bases, without risking contamination of the fluid or damage to the valve. Their ability to withstand harsh conditions and ensure precise flow control makes them invaluable in these applications.
Diaphragm valves are available in three main types: manual, pneumatic, and electric. Each type is suited to different applications, depending on the level of control needed and the operating conditions.
Manual Diaphragm Valves: Operated by a handwheel or lever, these valves are used in applications where precise control is needed, and the valve doesn't need to be adjusted frequently.

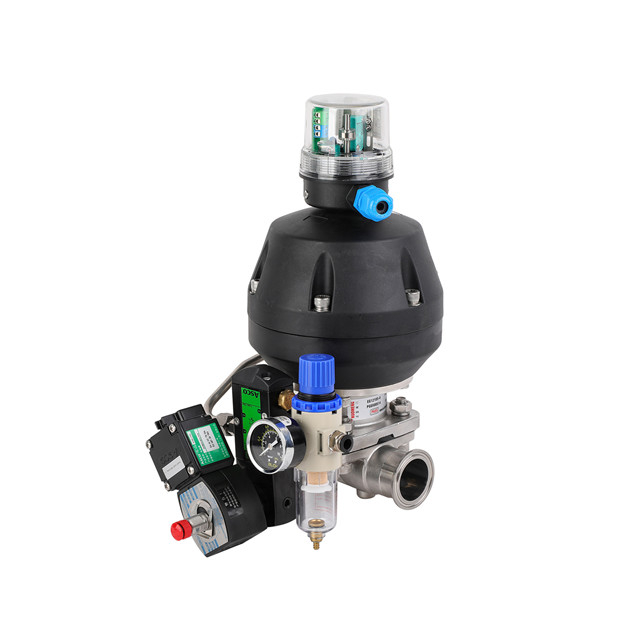

Pneumatic Diaphragm Valves: These valves are powered by compressed air and are often used in automated systems where frequent operation is required.
Electric Diaphragm Valves: These valves are actuated by an electric motor and are typically used in systems that require electronic control and monitoring.
Diaphragm valves are used in various industries, including water treatment, food and beverage processing, pharmaceuticals, chemical processing, and biotech. Their hygienic design and ability to control the flow of fluids make them ideal for industries that require strict sanitation standards.
The lifespan of a diaphragm valve depends on several factors, including the material of the diaphragm, the operating conditions, and the frequency of use. However, diaphragm valves typically have a long lifespan and require less maintenance than other types of valves due to their simple design and lack of moving parts in contact with the media.
Diaphragm valves play a crucial role in many industries by offering a reliable, hygienic, and precise solution for controlling fluid flow. Their unique design, which relies on the movement of a flexible diaphragm, makes them ideal for applications where cleanliness, flow control, and leak prevention are essential. Whether in water treatment, pharmaceuticals, food processing, or chemical industries, diaphragm valves provide an effective solution to maintain the integrity and safety of fluids and gases in piping systems.
